GC9107

TESTED TFT MODULES

(The images may not accurately represent the screen's colors due to the limitations of a low-end camera)

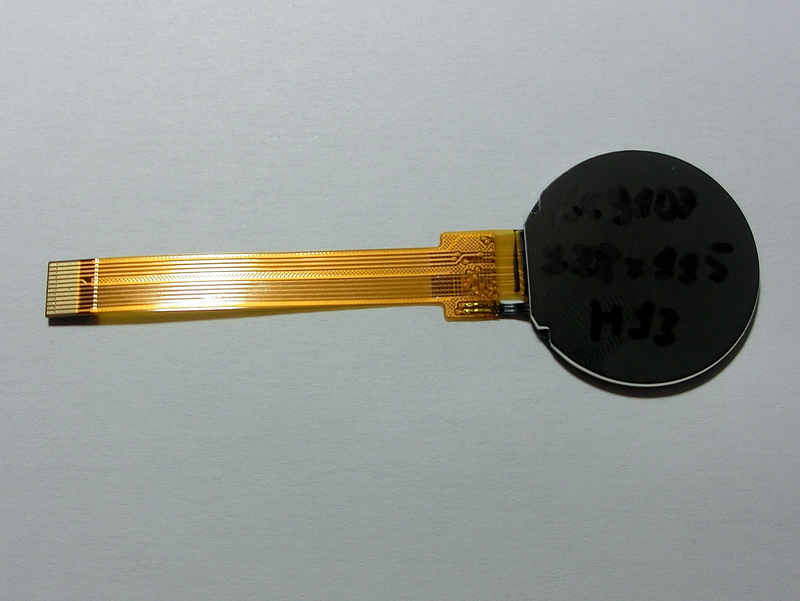

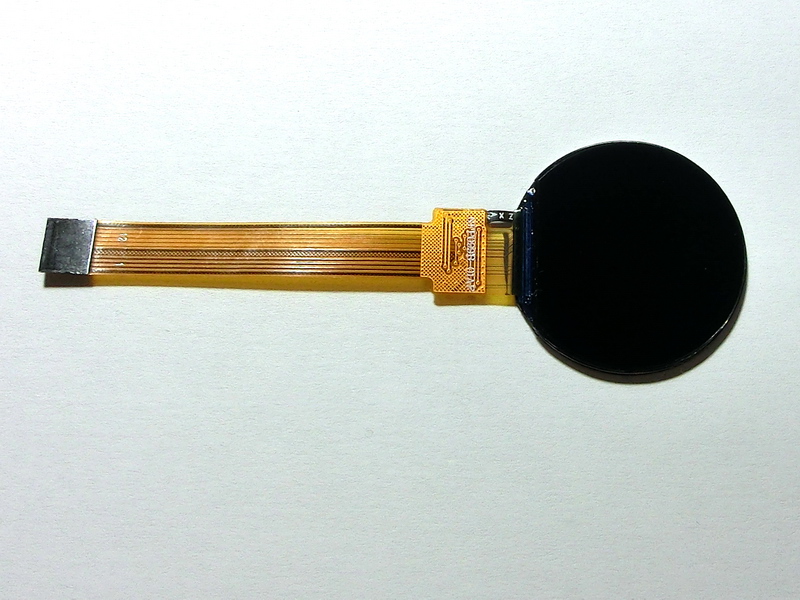

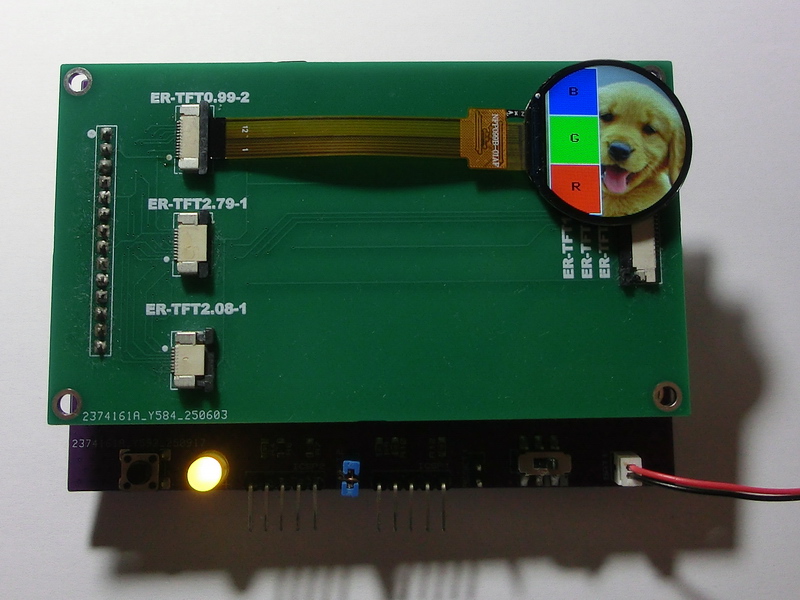

• 128x115 pixels

• 0.99 inch

• 16b RGB565 support

• SDA single uni-directional line

• TFT screen write only

• 3.3v supply

• Round TFT glass

• Needs pixel offset - odd offset only on internal Y axis - 90° and 180°

• Module specific driver 0

ER-TFT0.99-2.pdf

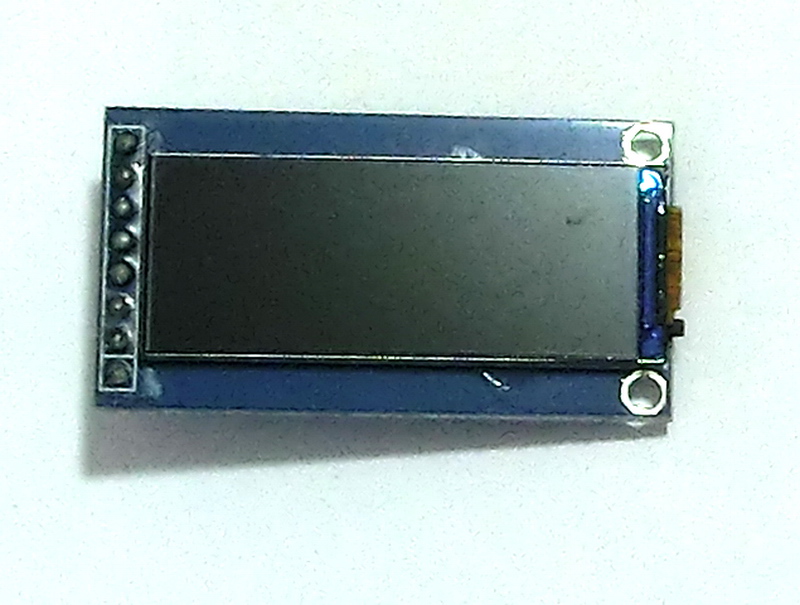

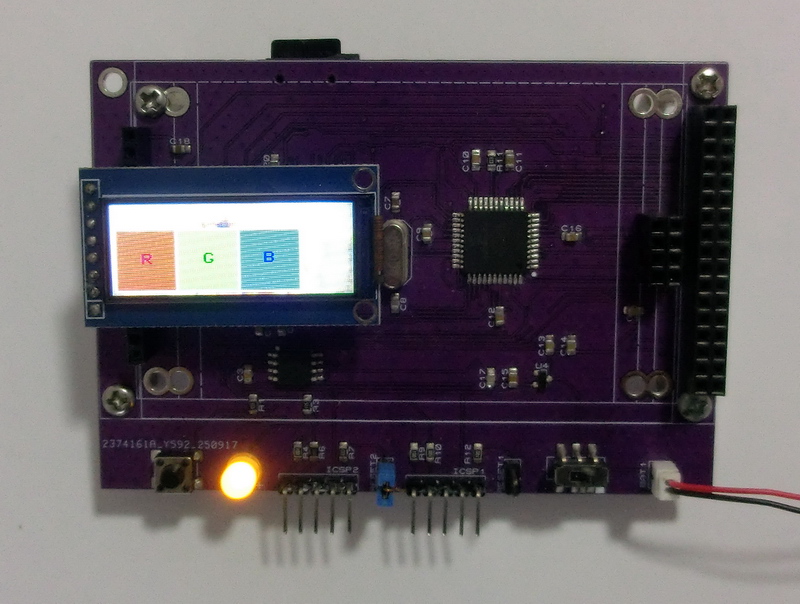

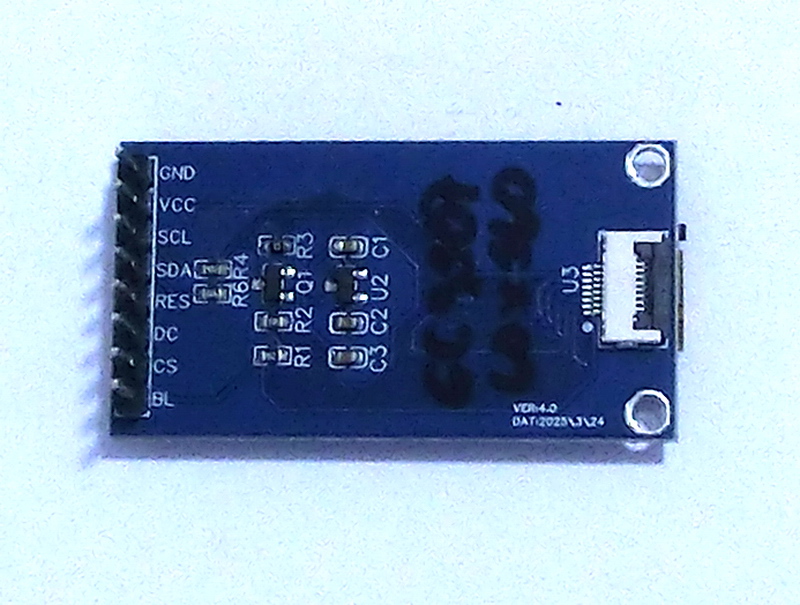

• 160x60 pixels

• 1.45 inch

• 16b RGB565 support

• SDA single uni-directional line

• TFT screen write only

• 5v supply but works on 3.3v supply

• Needs pixel offset

• Module specific driver 1

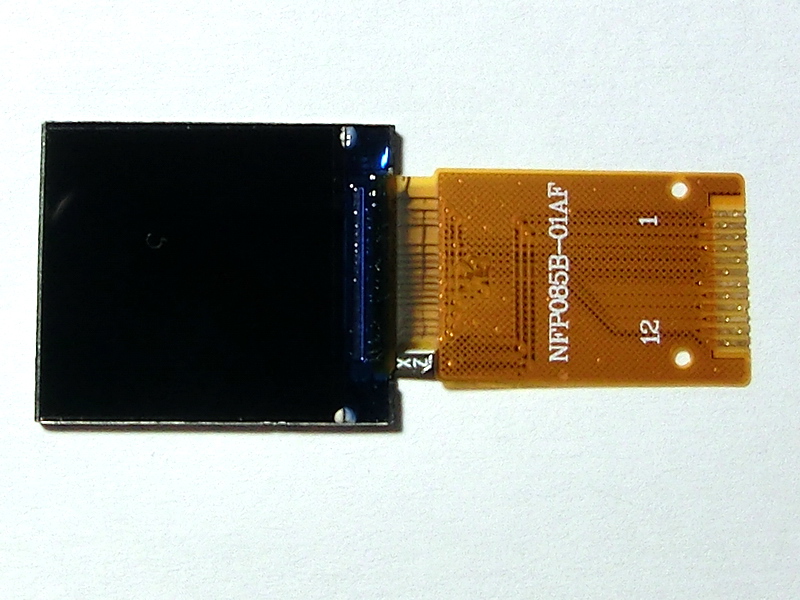

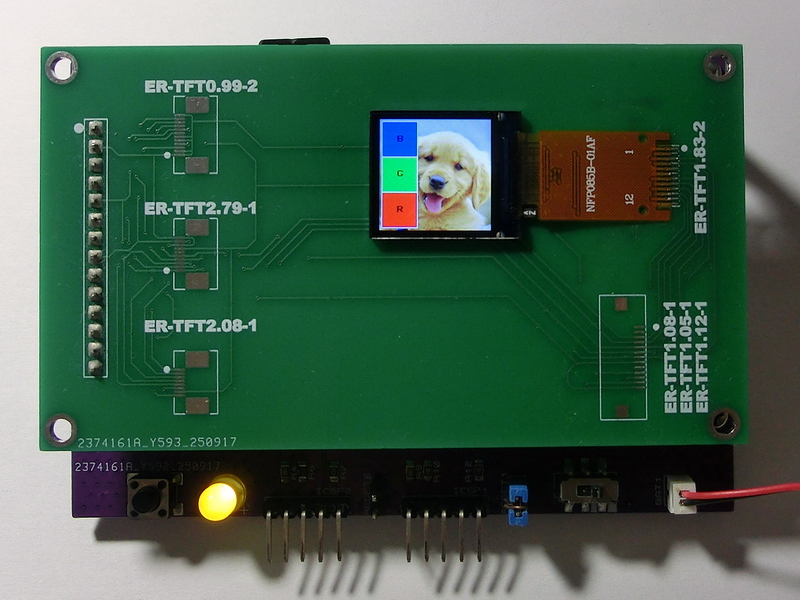

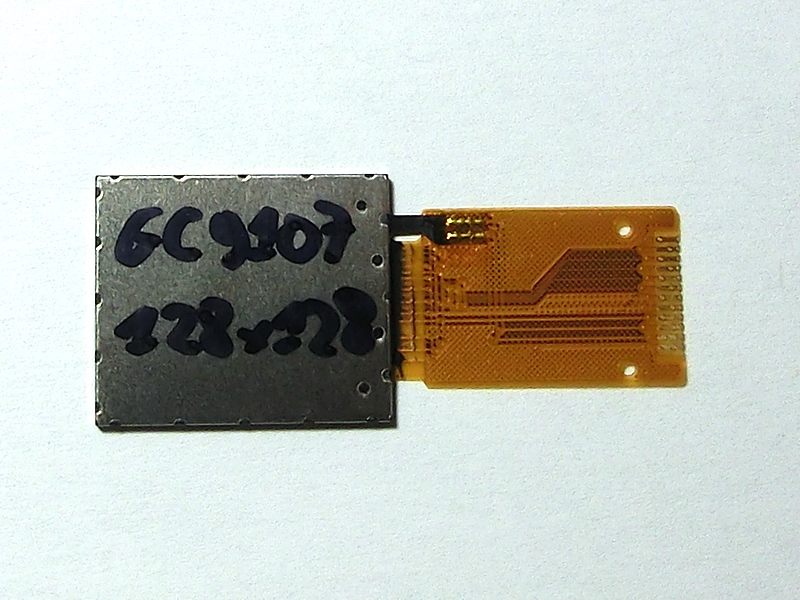

• 128x128 pixels

• 0.85 inch

• 16b RGB565 support

• SDA single uni-directional line

• TFT screen write only

• 5v supply but works on 3.3v supply

• Module specific driver 0

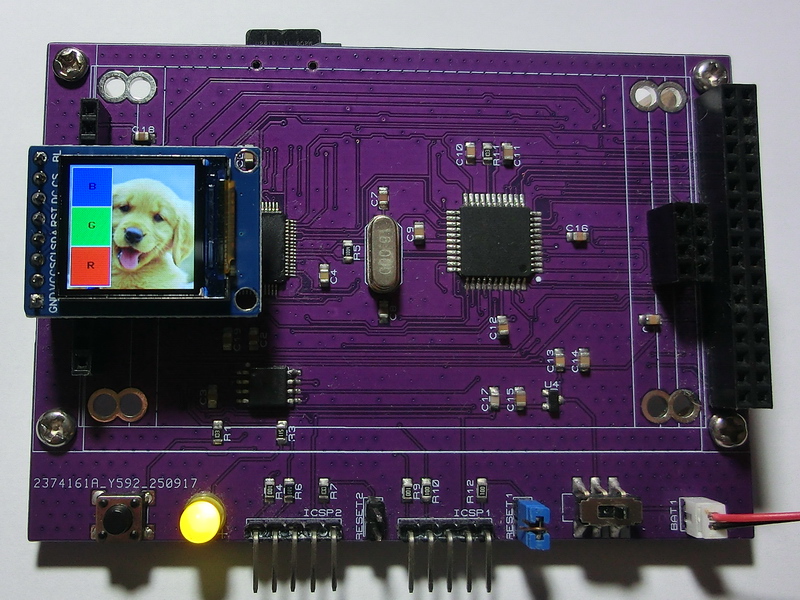

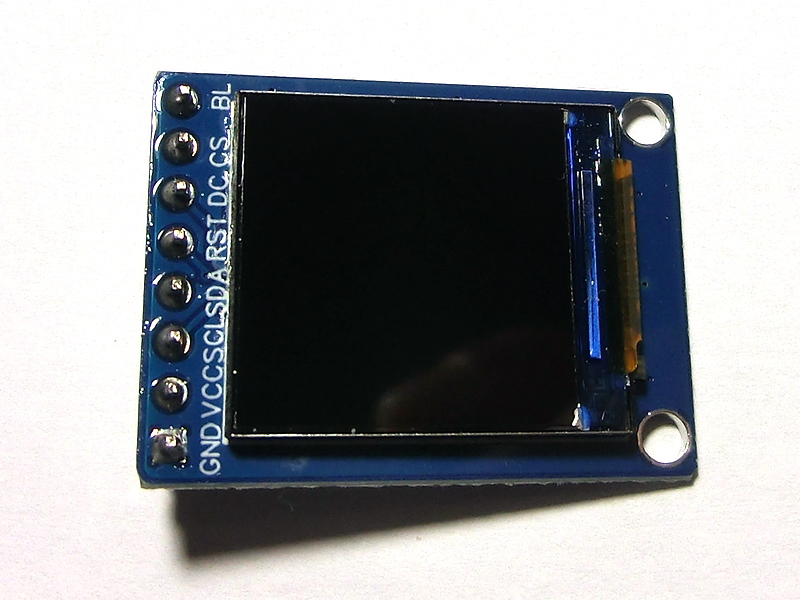

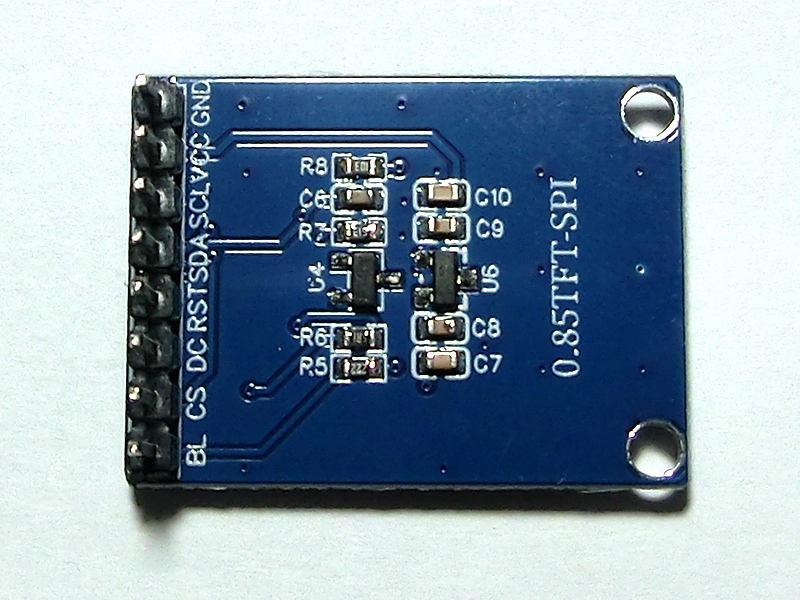

• 128x128 pixels

• 0.85 inch

• 16b RGB565 support

• SDA single uni-directional line

• TFT screen write only

• 3.3v supply

• Module specific driver 0

ER-TFT0.85-1.pdf
