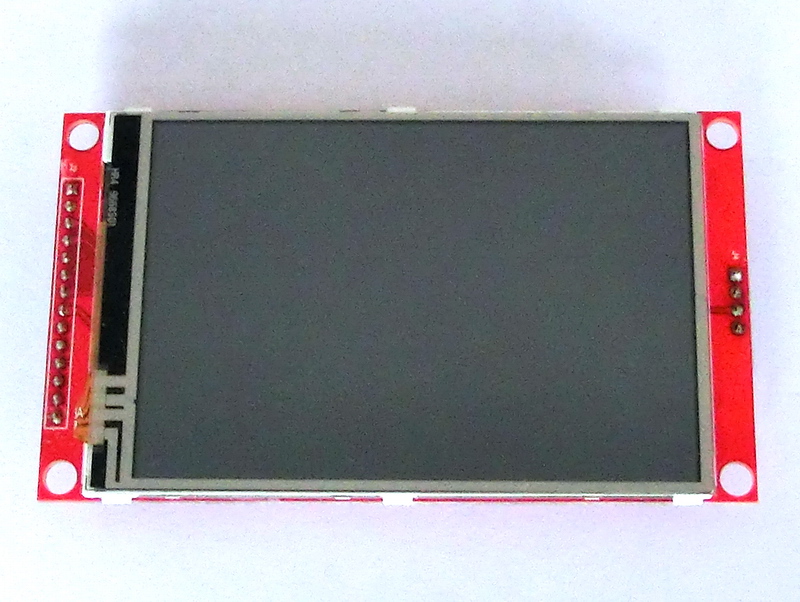

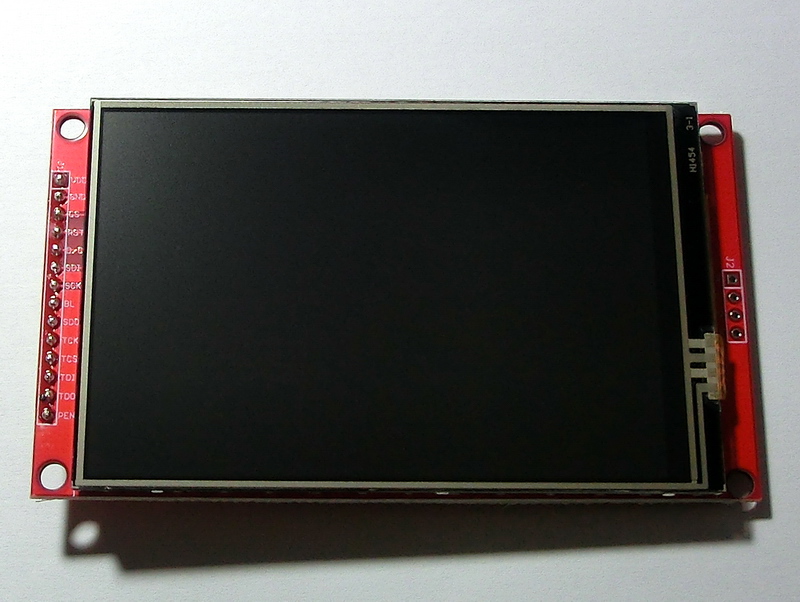

ILI9488

TESTED TFT MODULES

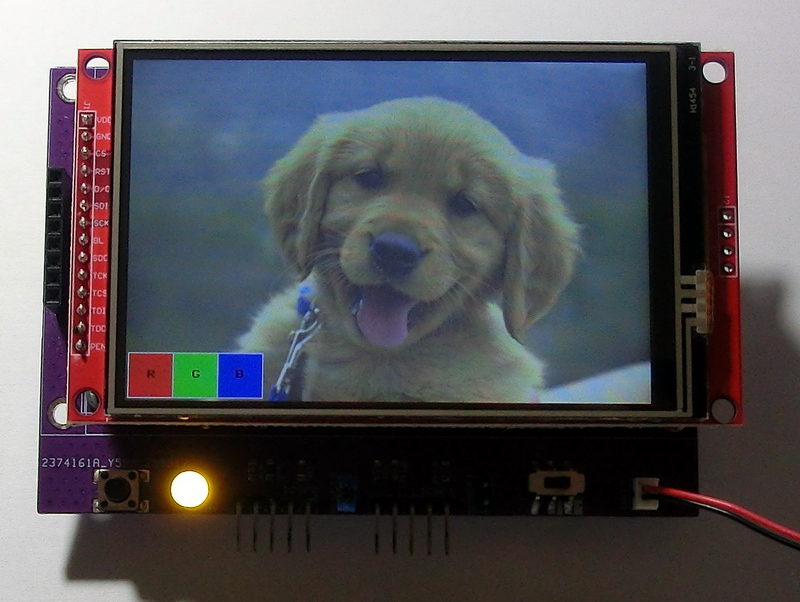

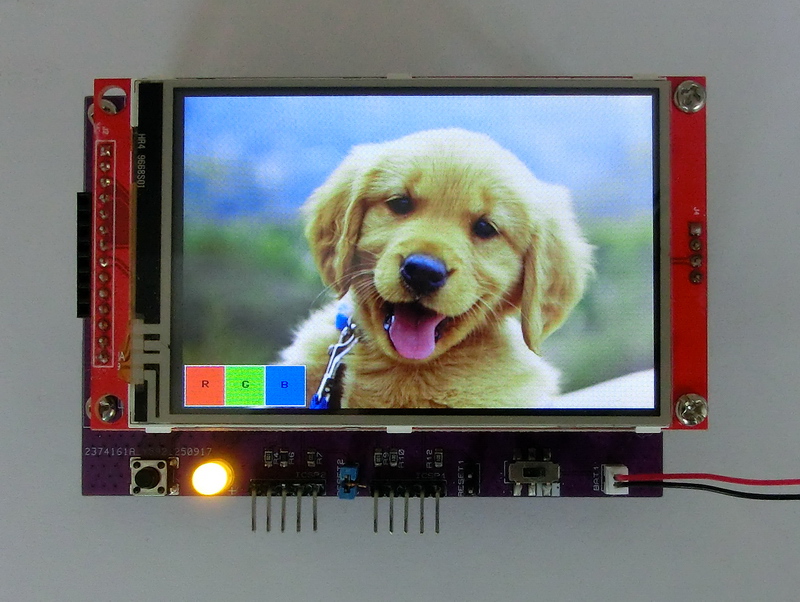

(The images may not accurately represent the screen's colors due to the limitations of a low-end camera)

• 480x320 pixels

• 3.5 inch

• No 16b RGB565 support

• 18b RGB666 requires SW conversion to RGB565

• Touch screen (1)

• MOSI and MISO lines available

• TFT screen write and read

• Can use 5v or 3.3v supply selected with a solderable jumper resistor (0 Ohm)

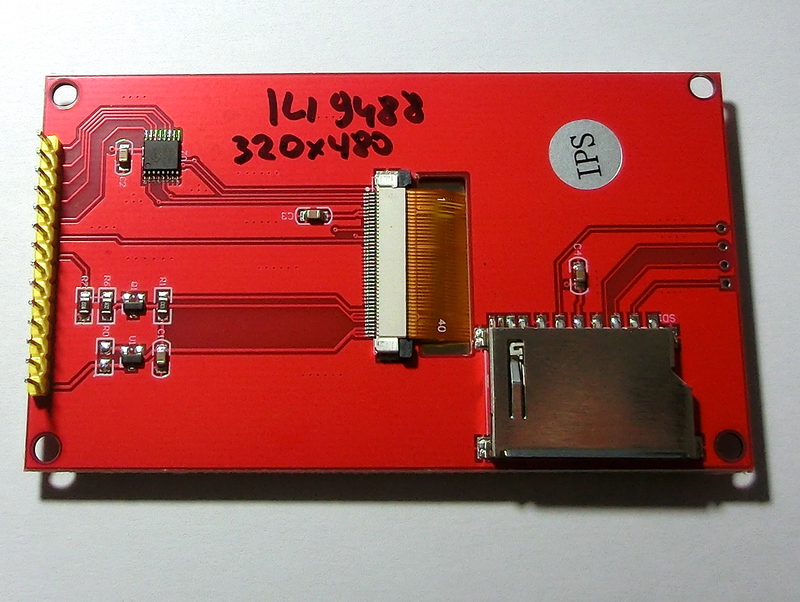

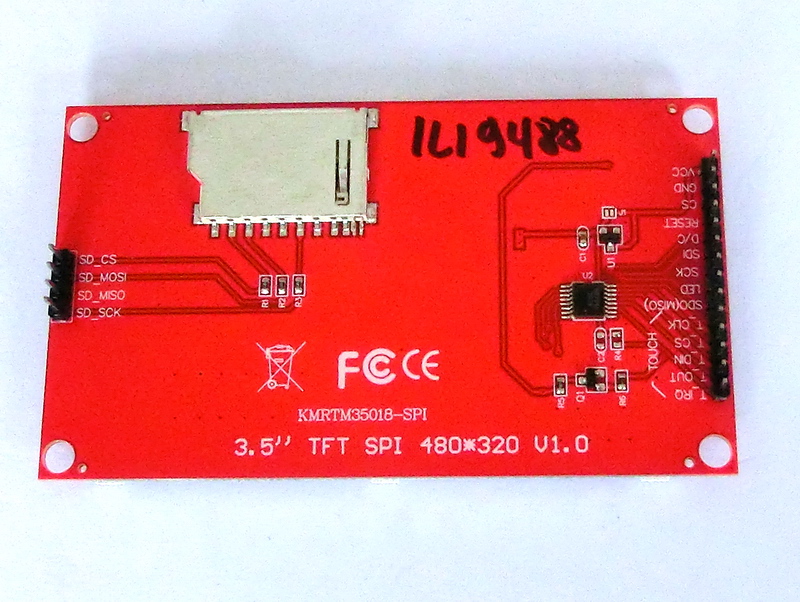

• SD Card slot available

(1) Connect to different PIC MOSI pin.

The ILI9488 does not tri-state the MOSI line when CS is high, preventing other SPI devices that share the same MOSI line from operating correctly.

• 480x320 pixels

• 3.5 inch

• No 16b RGB565 support

• 18b RGB666 requires SW conversion to RGB565

• Touch screen (1)

• MOSI and MISO lines available

• TFT screen write and read

• Can use 5v or 3.3v supply selected with a solderable jumper resistor (0 Ohm)

• SD Card slot available

(1) Connect to different PIC MOSI pin.

The ILI9488 does not tri-state the MOSI line when CS is high, preventing other SPI devices that share the same MOSI line from operating correctly.
