NV3007

TESTED TFT MODULES

(The images may not accurately represent the screen's colors due to the limitations of a low-end camera)

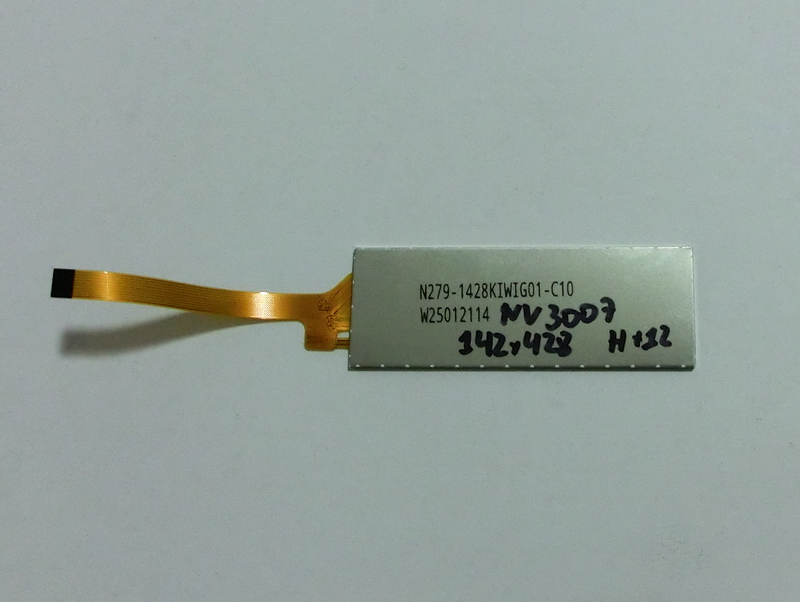

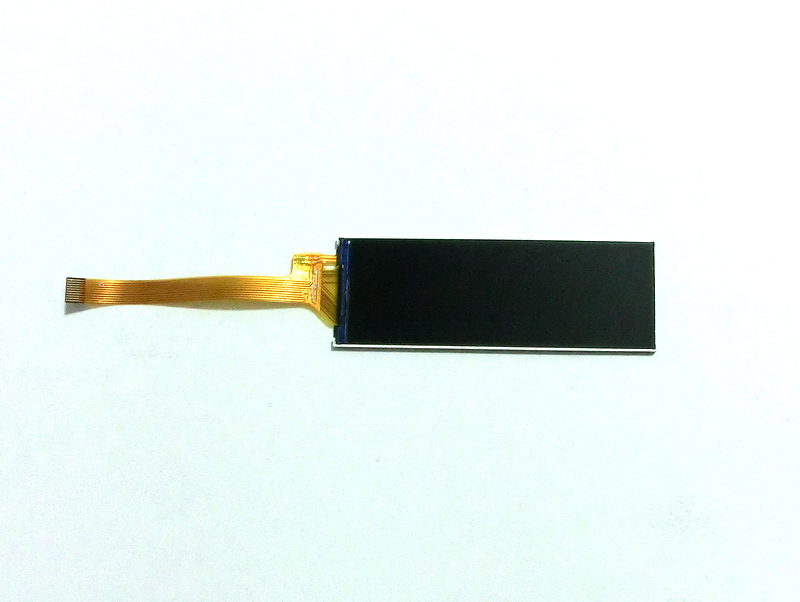

• 428x142 pixels
• 2.79 inch
• 16b RGB565 support
• SDA single uni-directional line
• TFT screen write only
• 3.3v supply
• Needs pixel offset
• No PCB
• Module specific driver 1

ER-TFT2.79-1.pdf

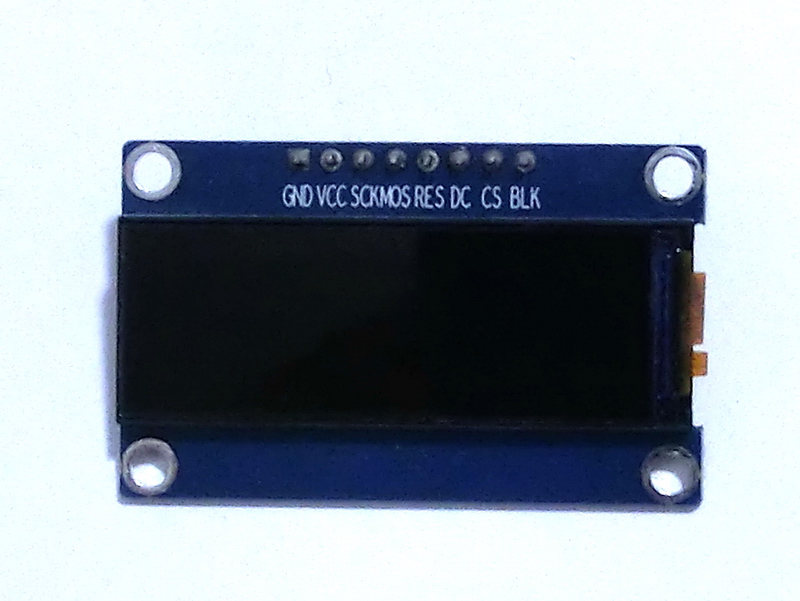

• 428x142 pixels
• 1.65 inch
• 16b RGB565 support
• SDA single uni-directional line
• TFT screen write only
• 5v supply but works on 3.3v supply
• Needs pixel offset
• Module specific driver 0

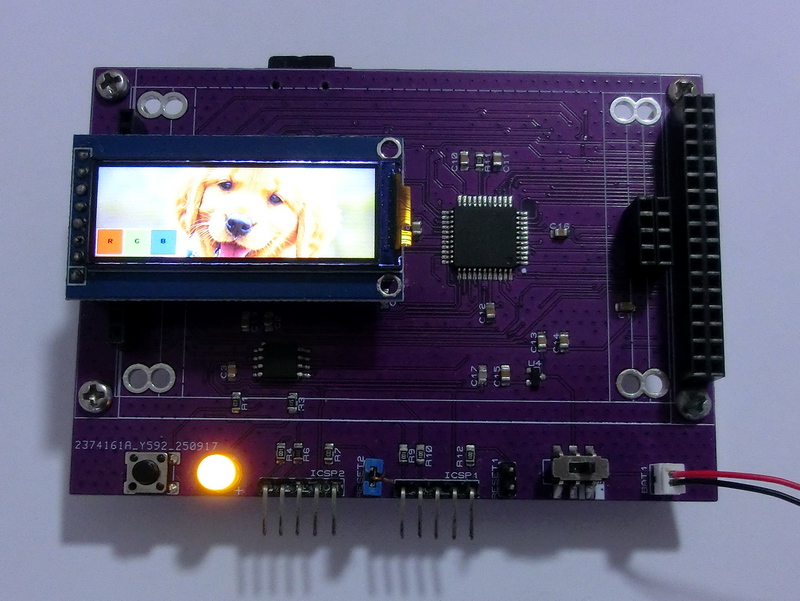

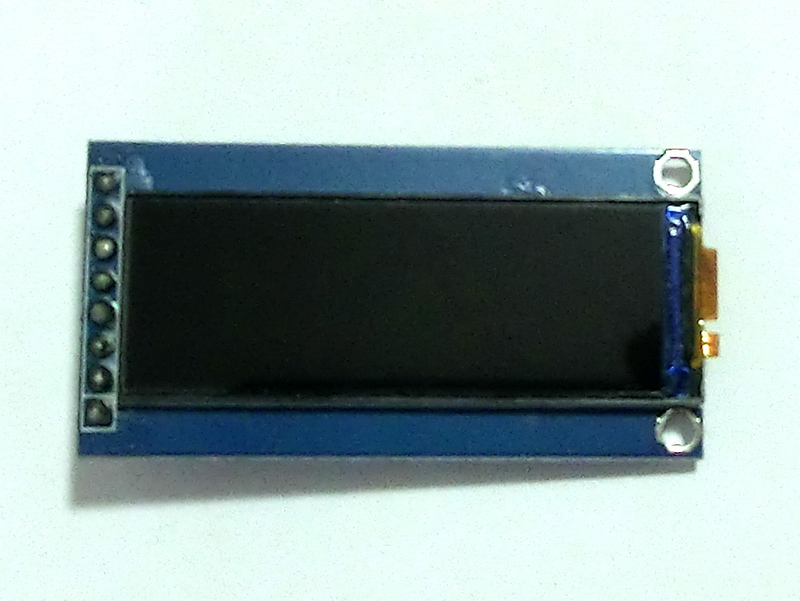

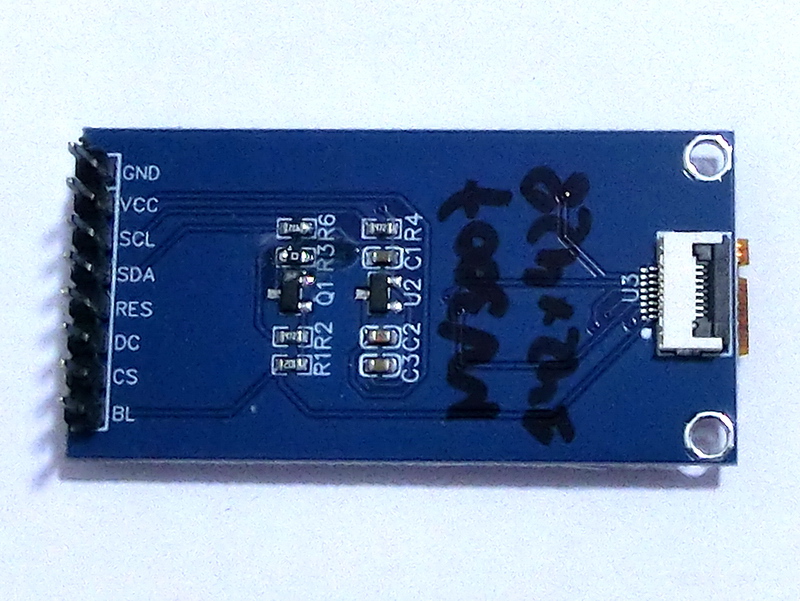

• 428x142 pixels
• 1.45 inch
• 16b RGB565 support
• SDA single uni-directional line
• TFT screen write only
• 5v supply but works on 3.3v supply
• Needs pixel offset
• Module specific driver 0
