ST7735

(dtasheet)


TESTED TFT MODULES

(The images may not accurately represent the screen's colors due to the limitations of a low-end camera)

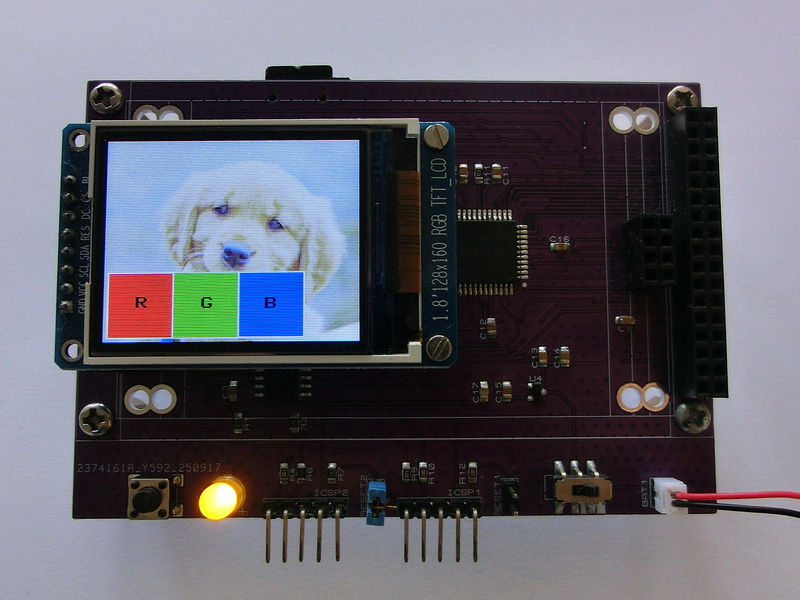

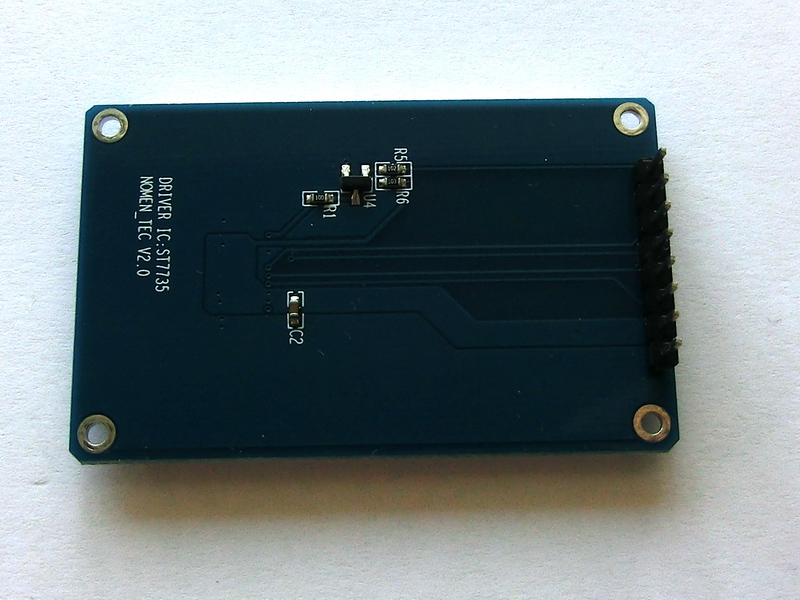

  • 160x128 pixels


  • 1.8 inch


  • 16b RGB565 support


  • SDA single bi-directional line


  • TFT screen write and read


  • 5v supply but works on 3.3v supply


  • Needs pixel offset

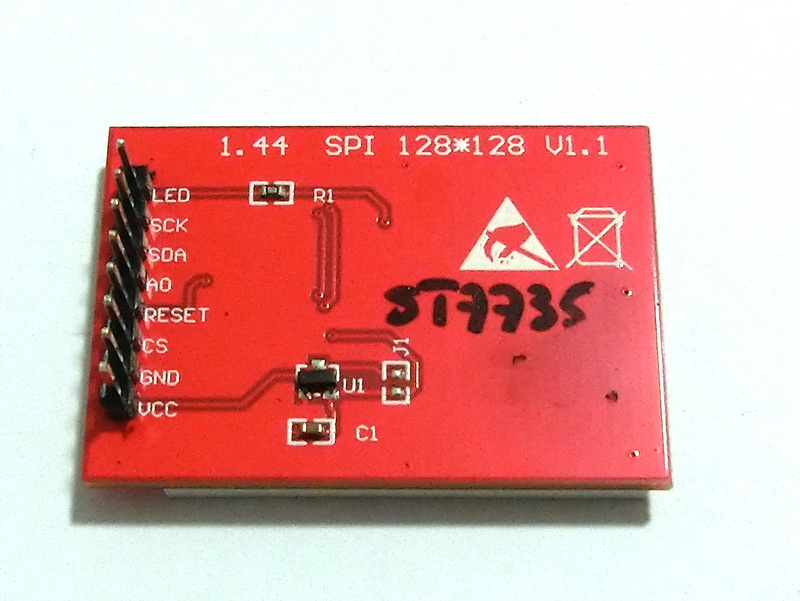

  • 128x128 pixels


  • 1.44 inch


  • 16b RGB565 support


  • SDA single bi-directional line


  • TFT screen write and read


  • Can use 5v or 3.3v supply selected with a solderable jumper resistor (0 Ohm)


  • Needs pixel offset
