TESTED TFT MODULES
(The images may not accurately represent the screen's colors due to the limitations of a low-end camera)
|

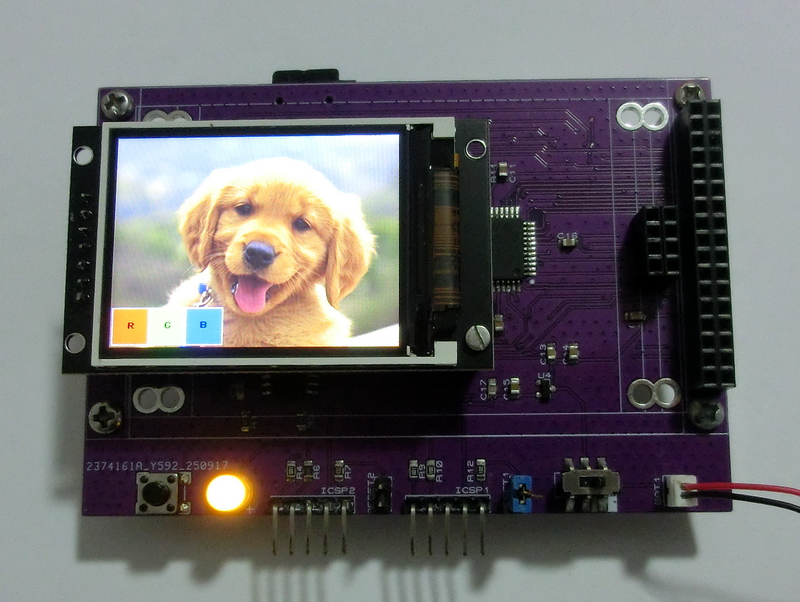

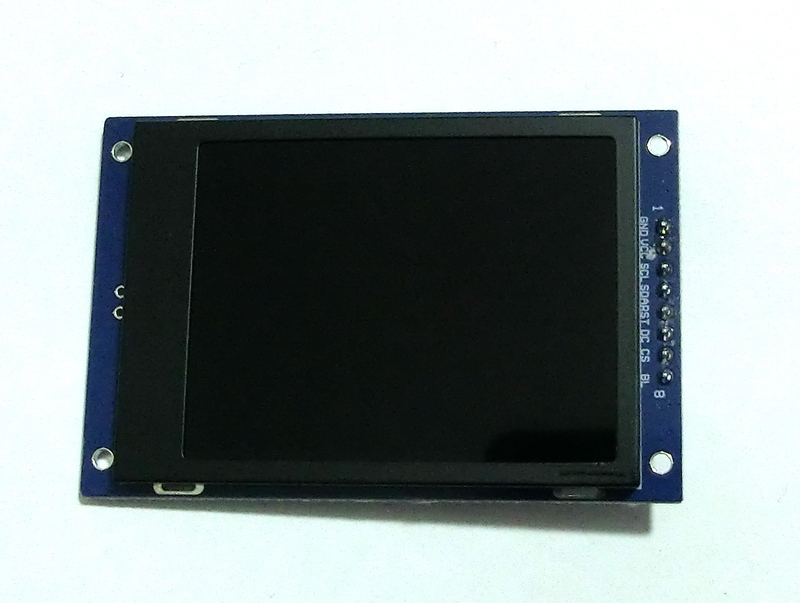

- 320x240 pixels
- 2.4 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 5v supply but works on 3.3v supply
|
|
|
|
|

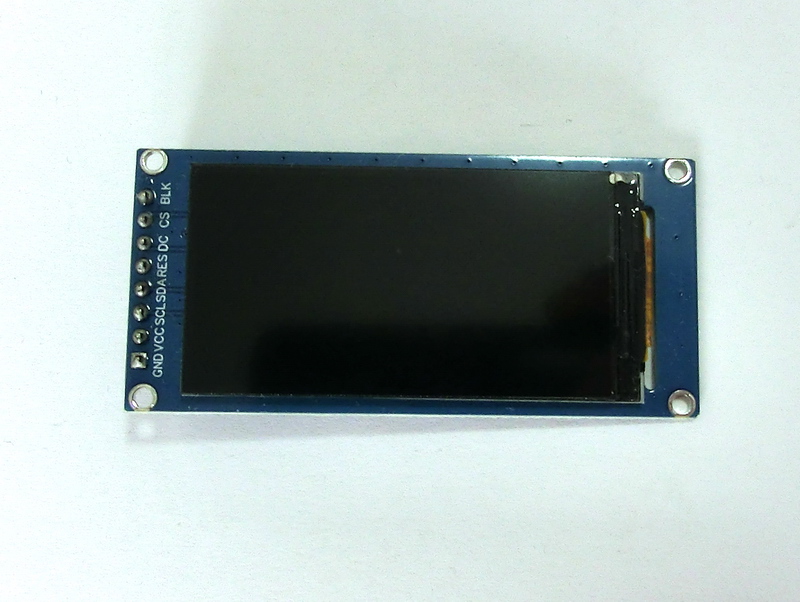

- 320x170 pixels
- 1.9 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 5v supply but works on 3.3v supply
- Needs pixel offset
|
|
|
|
|

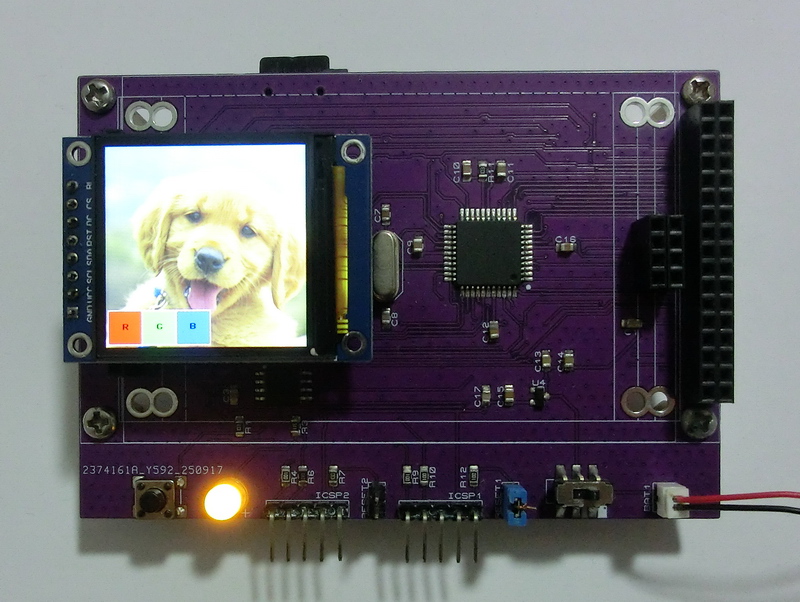

- 240x240 pixels
- 1.54 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 5v supply but works on 3.3v supply
- Needs pixel offset - odd offset only on internal Y axis - 90° and 180°
|
|
|
|
|

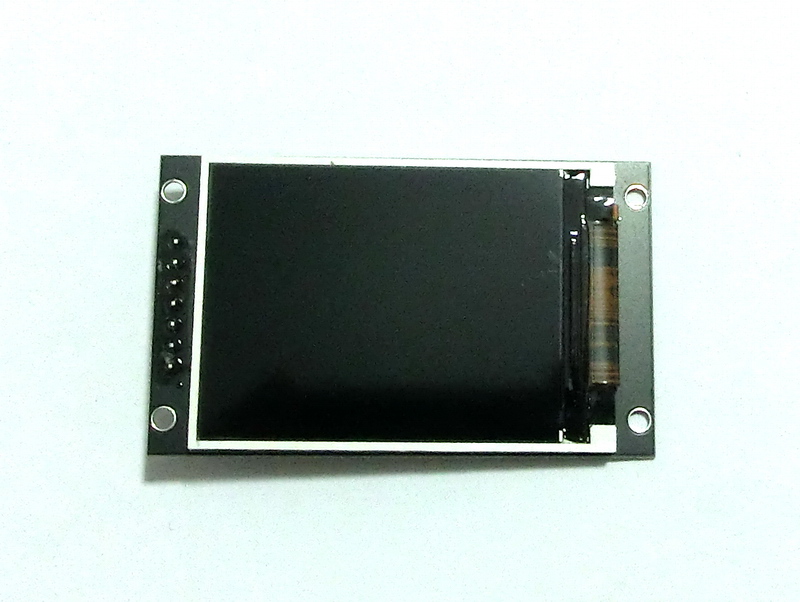

- 320x240 pixels
- 2.0 inch
- 16b RGB565 support
- SDA single uni-directional line
- TFT screen write only
- 5v supply but works on 3.3v supply
|
|
|
|
|

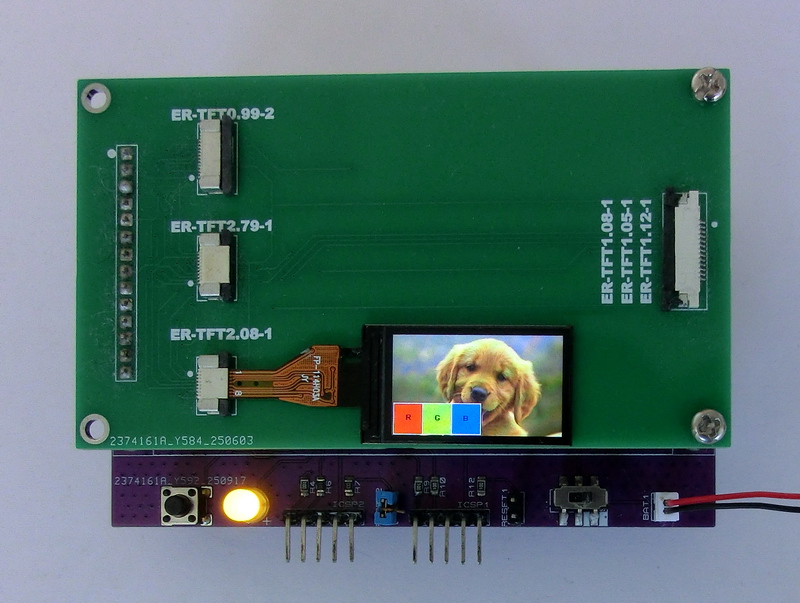

- 240x135 pixels
- 1.14 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 5v supply but works on 3.3v supply
- Needs pixel offset
- Some defects on TFT glass (bad sample)
|
|
|
|
|

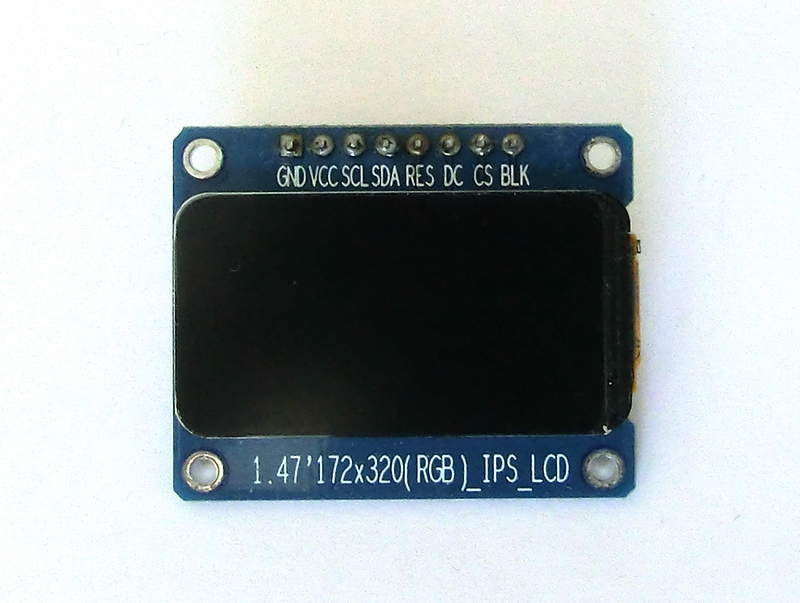

- 320x172 pixels
- 1.47 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 5v supply but works on 3.3v supply
- Needs pixel offset
|
|
|
|
|
- 320x172 pixels
- 1.47 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 5v supply but works on 3.3v supply
- Needs pixel offset
|
|
|
|
|
- 240x135 pixels
- 1.14 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 3.3v supply
- Needs pixel offset
- No PCB
ER-TFT1.14-2.pdf
|
|
|
|
|

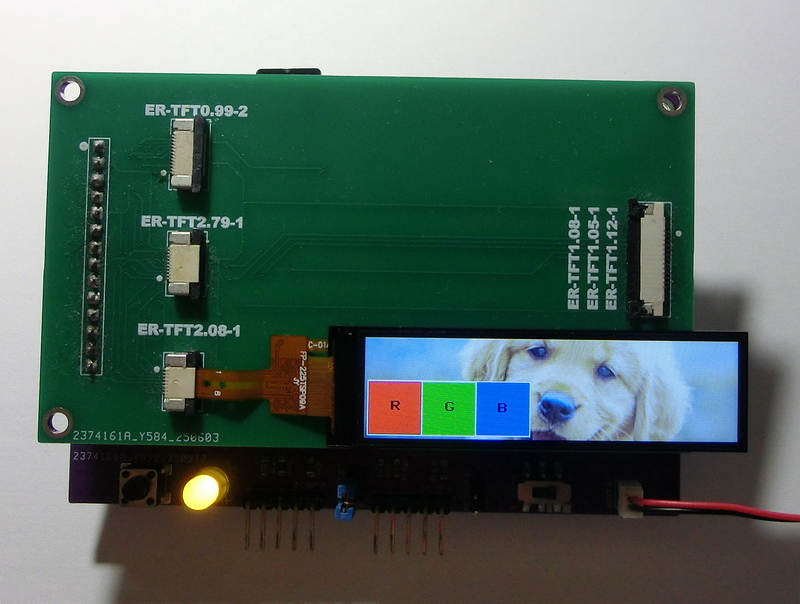

- 284x76 pixels
- 2.25 inch
- 16b RGB565 support
- SDA single bi-directional line
- TFT screen write and read
- 3.3v supply
- Needs pixel offset
- No PCB
284x76_ST7789.pdf
|
|
|
|
|
