TftEllipseE()
… visits
TftEllipseE(wX_Center As Word, wY_Center As Word, bRadiusH As Word, bRadiusV As Word, wColor As Word)
|
Parameter |
Description |
|
wX_Center |
X-coordinate of the ellipse center |
|
wY_Center |
Y-coordinate of the ellipse center |
|
bRadiusH |
Horizontal radius of the ellipse (in pixels) |
|
bRadiusV |
Vertical radius of the ellipse (in pixels) |
|
wColor |
Ellipse outline color in 16-bit RGB565 format |
Draws an empty ellipse with the specified center coordinates, horizontal and vertical radii, and outline color.
|

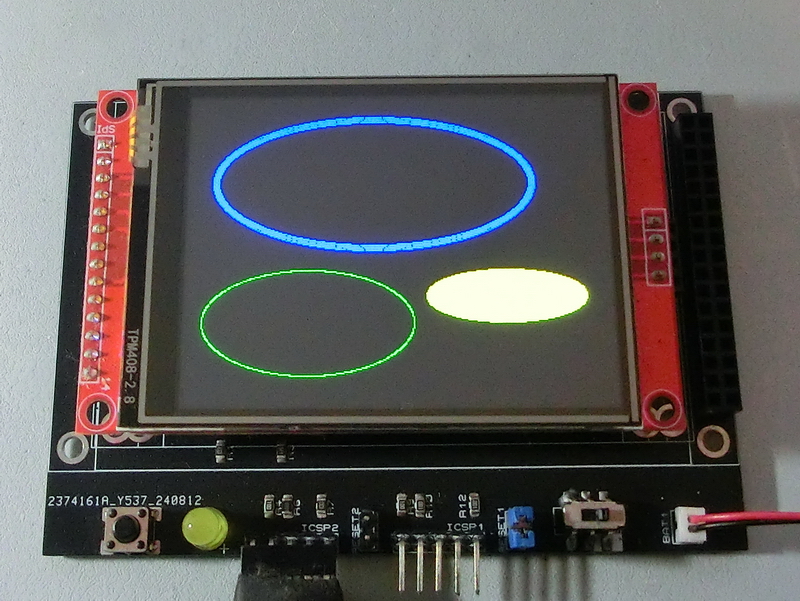

TftSetUp(0, 0) TftResetScreen(BLACK) TftEllipseE(90,60,80,40,GREEN) TftEllipseS(240,80,60,20,YELLOW) TftEllipse(140,170,120,50,0,BLUE,4,1) |
|
