TftLine()
… visits
TftLine(wX_Start As Word, wY_Start As Word, wX_Stop As Word, wY_Stop As Word, wColor As Word, bWidth As Byte, sbDirection As SByte)
|
Parameter |
Description |
|
wX_Start |
X start coordinate |
|
wY_Start |
Y start coordinate |
|
wX_Stop |
X stop coordinate |
|
wY_Stop |
Y stop coordinate |
|
wColor |
16-bit RGB565 color |
|
bWidth |
Additional width of the line in pixels. 0 means no additional width (i.e., 1 pixel wide). |
|
sbDirection |
Pixel position to form the additional width relative to the line direction: |
-1 = Expand downwards
1 = Expand upwards
Else = Ignored (no additional width)
-1 = Expand left
1 = Expand right
Else = Ignored (no additional width)
-1 = Expand left
1 = Expand right
Else = Ignored (no additional width)
Draws a line with optional expansion.
TftLine(10,5, 120,20, GREEN, 2, -1)
|

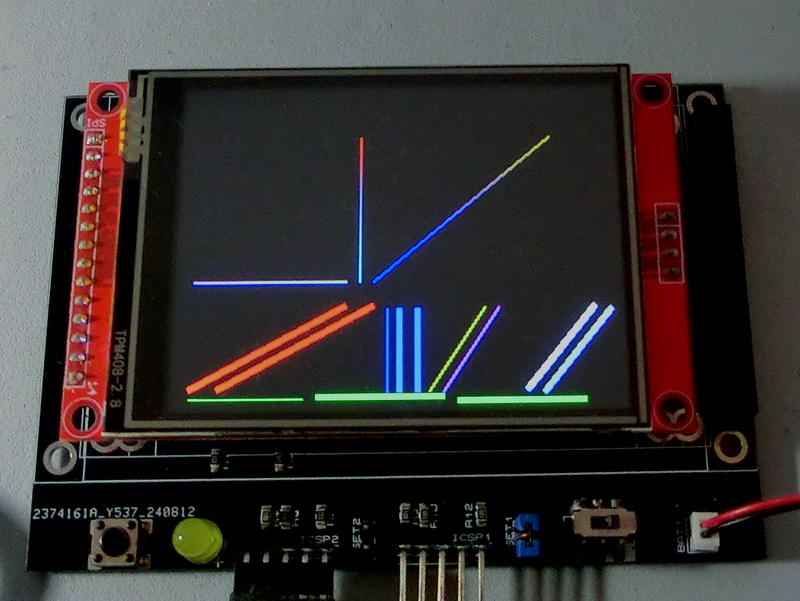

TftSetUp(0, 0) TftResetScreen(BLACK) TftLineHN(10,90,5,GREEN) TftLineHTU(100,190,5,GREEN,3) TftLineHTD(200,290,5,GREEN,3) TftLine(10,10,120,70,RED,3,-1) TftLine(30,10,140,70,RED,3,-1) TftLineVN(150,10,70,BLUE) TftLineVTL(160,10,70,BLUE,3) TftLineVTR(170,10,70,BLUE,3) TftLineDN(180,10,220,70,YELLOW) TftLineDNF(190,10,230,70,PINK) TftLineDT(250,10,300,70,LIGHTGREY,3,-1) TftLineDT(260,10,310,70,DARKGREY,3,1) TftLineHNG(10,120,90,VIOLET,WHITE) TftLineVNG(130,90,200,CYAN,RED) TftLineDNG(140,90,270,200,BLUE,ORANGE) |
|
