TftLineDNF()
… visits
TftLineDNF(wX_Start As Word, wY_Start As Word, wX_Stop As Word, wY_Stop As Word, wColor As Word)
|
Parameter |
Description |
|
wX_Start |
Starting X-coordinate |
|
wY_Start |
Starting Y-coordinate |
|
wX_Stop |
Ending X-coordinate |
|
wY_Stop |
Ending Y-coordinate |
|
wColor |
Line color in 16-bit RGB565 format |
Draws a 1-pixel thick diagonal line from the start coordinates (wX_Start, wY_Start) to the stop coordinates (wX_Stop, wY_Stop) using a fast but less accurate Bresenham's line algorithm, for quick rendering.
TftLineDNF(10,5, 120,50, GREEN)
|

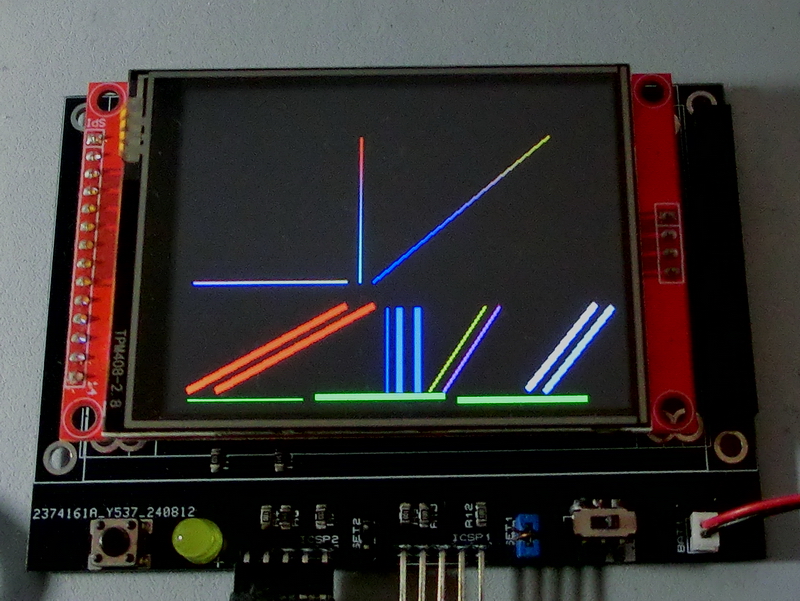

TftSetUp(0, 0) TftResetScreen(BLACK) TftLineHN(10,90,5,GREEN) TftLineHTU(100,190,5,GREEN,3) TftLineHTD(200,290,5,GREEN,3) TftLine(10,10,120,70,RED,3,-1) TftLine(30,10,140,70,RED,3,-1) TftLineVN(150,10,70,BLUE) TftLineVTL(160,10,70,BLUE,3) TftLineVTR(170,10,70,BLUE,3) TftLineDN(180,10,220,70,YELLOW) TftLineDNF(190,10,230,70,PINK) TftLineDT(250,10,300,70,LIGHTGREY,3,-1) TftLineDT(260,10,310,70,DARKGREY,3,1) TftLineHNG(10,120,90,VIOLET,WHITE) TftLineVNG(130,90,200,CYAN,RED) TftLineDNG(140,90,270,200,BLUE,ORANGE) |
|
