TftLineVNG()
… visits
TftLineVNG(wX_Common As Word, wY_Start As Word, wY_Stop As Word, wStartColor As Word, wEndColor As Word)
|
Parameter |
Description |
|
wX_Common |
X-coordinate for the vertical line |
|
wY_Start |
Starting Y-coordinate |
|
wY_Stop |
Ending Y-coordinate |
|
wStartColor |
Starting gradient color in 16-bit RGB565 format |
|
wEndColor |
Ending gradient color in 16-bit RGB565 format |
Draws a one-pixel thick vertical line at wX_Common, with a gradient color transition from wStartColor at wY_Start to wEndColor at wY_Stop.

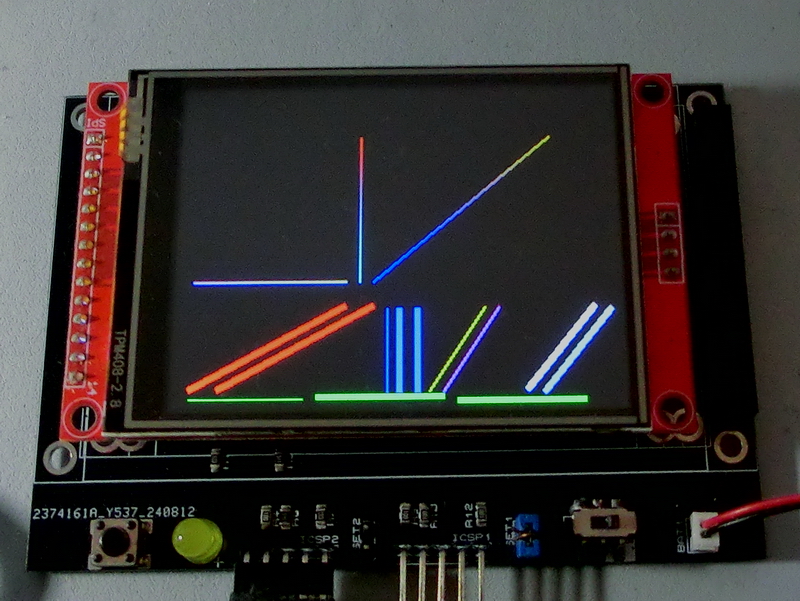

TftLineVNG(10,5,100, GREEN,RED)
|
TftSetUp(0, 0) TftResetScreen(BLACK) TftLineHN(10,90,5,GREEN) TftLineHTU(100,190,5,GREEN,3) TftLineHTD(200,290,5,GREEN,3) TftLine(10,10,120,70,RED,3,-1) TftLine(30,10,140,70,RED,3,-1) TftLineVN(150,10,70,BLUE) TftLineVTL(160,10,70,BLUE,3) TftLineVTR(170,10,70,BLUE,3) TftLineDN(180,10,220,70,YELLOW) TftLineDNF(190,10,230,70,PINK) TftLineDT(250,10,300,70,LIGHTGREY,3,-1) TftLineDT(260,10,310,70,DARKGREY,3,1) TftLineHNG(10,120,90,VIOLET,WHITE) TftLineVNG(130,90,200,CYAN,RED) TftLineDNG(140,90,270,200,BLUE,ORANGE) |
|
