TftLineVTL()
… visits
TftLineVTL(wX_Common As Word, wY_Start As Word, wY_Stop As Word, wColor As Word, bWidth As Byte)
|
Parameter |
Description |
|
wX_Common |
The common X-coordinate for the vertical line. |
|
wY_Start |
The starting Y-coordinate of the vertical line. |
|
wY_Stop |
The ending Y-coordinate of the vertical line. |
|
wColor |
The color of the line in 16-bit RGB565 format. |
|
bWidth |
The width of the vertical line. A value of 0 means no additional width (i.e., 1-pixel wide), and higher values will expand the line to the left |
Draws a vertical line expanded to the left.
TftLineVTL(10,5,100, GREEN, 2)
|

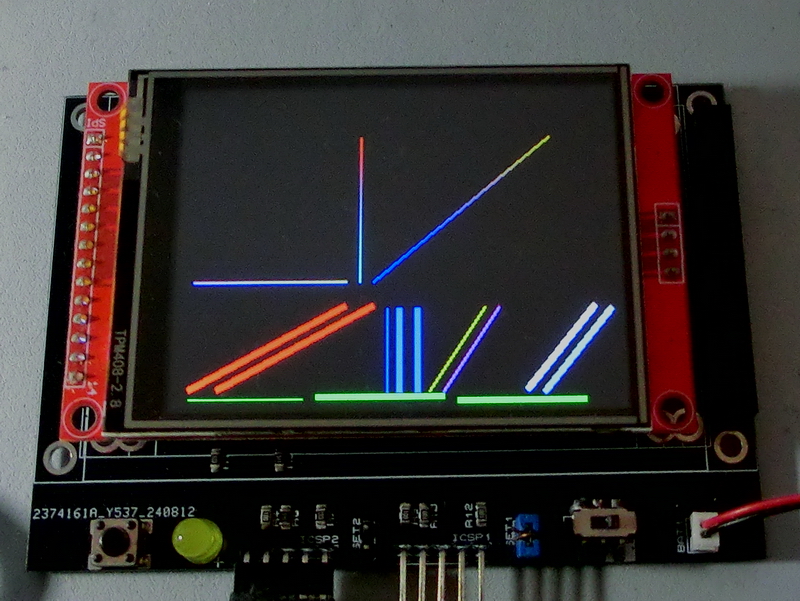

TftSetUp(0, 0) TftResetScreen(BLACK) TftLineHN(10,90,5,GREEN) TftLineHTU(100,190,5,GREEN,3) TftLineHTD(200,290,5,GREEN,3) TftLine(10,10,120,70,RED,3,-1) TftLine(30,10,140,70,RED,3,-1) TftLineVN(150,10,70,BLUE) TftLineVTL(160,10,70,BLUE,3) TftLineVTR(170,10,70,BLUE,3) TftLineDN(180,10,220,70,YELLOW) TftLineDNF(190,10,230,70,PINK) TftLineDT(250,10,300,70,LIGHTGREY,3,-1) TftLineDT(260,10,310,70,DARKGREY,3,1) TftLineHNG(10,120,90,VIOLET,WHITE) TftLineVNG(130,90,200,CYAN,RED) TftLineDNG(140,90,270,200,BLUE,ORANGE) |
|
