TftPrintBdfString() | TFT & EPD Graphic Library 2

Syntax

TftPrintBdfString(sString As sTftString, swX_Pos As SWord, swY_Pos As SWord, wEndOfLine As Word, bBreakLine As Byte, wForeColor As Word, wBackColor As Word, pTransparent As Bit)

Parameters

Parameter	Description
sString	A null-terminated string to print, up to 72 characters.
swX_Pos	The absolute X-position of the character's lower-left corner.
swY_Pos	The absolute Y-position of the character's lower-left corner.
wEndOfLine	The absolute X-position for the last character in the printed line. 0: Max screen width.

Overview

Else: A valid value between swX_Pos and the screen width.

bBreakLine — Defines how long words are broken into new lines:

0: Do nothing (no line break).
1: Break the line and overflow from swX_Pos.
2: Break the line and continue from swX_Pos on a new line (decrement swY_Pos by one).
3: Break the line and continue from x = 0.
4: Break the line and continue from x = 0 on a new line (decrement swY_Pos by one).

wForeColor — The 16-bit RGB565 color for the character (used for the active pixels of the glyph).

wBackColor — The 16-bit RGB565 color for the background (used for empty pixels in the glyph box).

pTransparent — Whether to use transparency:

1: Yes (only active pixels are printed, preserving the background).
0: No (inactive pixels are filled with the background color).

Print a string using BDF font.

Example

TftPrintBdfString("TEST", 1, 1, 310, 0, WHITE, BLACK, 0)

Notes

Background color (wBackColor) is ignored if transparency is used, and only the active pixels of the glyph are printed, which is slower than using the background color.
BDF fonts have uneven sizes and offsets for each glyph, so the exact space needed for a string cannot be predicted.
However, string handling with end-of-line management is implemented to prevent overflow.
wEndOfLine specifies the rightmost boundary for the printed string. If set to 0 or greater than the screen width, the string will be printed until the screen's edge.

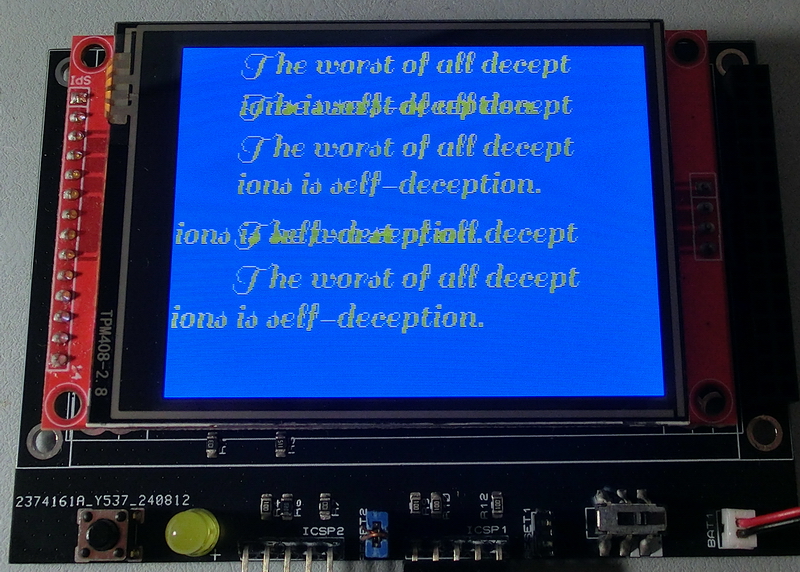

Include "TftLib\Fonts\SND\F5_BDF_Sail-Regular-25.inc"

'....

TftSetUp(0, 0)

TftSetBdfFont(5)

TftResetScreen(BLUE)

TftPrintBdfString("The worst of all deceptions is self-deception.", 40, 220, 280, 0, YELLOW, BLACK, 1)

TftPrintBdfString("The worst of all deceptions is self-deception.", 40, 190, 280, 1, YELLOW, BLACK, 1)

TftPrintBdfString("The worst of all deceptions is self-deception.", 40, 160, 280, 2, YELLOW, BLACK, 1)

TftPrintBdfString("The worst of all deceptions is self-deception.", 40, 100, 280, 3, YELLOW, BLACK, 1)

TftPrintBdfString("The worst of all deceptions is self-deception.", 40, 70, 280, 4, YELLOW, BLACK, 1)

TftPrintBdfString()
