TftRectangleRC() | TFT & EPD Graphic Library 2

Syntax

TftRectangleRC(wX_1 As Word, wY_1 As Word, wX_3 As Word, wY_3 As Word, bRadius As Byte, pSolid As Bit, wColor As Word, bWidth As Byte, sbDirection As SByte)

Parameters

Parameter	Description
wX_1	X-coordinate of Corner 1
wY_1	Y-coordinate of Corner 1
wX_3	X-coordinate of Corner 3
wY_3	Y-coordinate of Corner 3
bRadius	Radius for rounded corners
pSolid	Rectangle fill type: 0: No fill 1: Solid fill
wColor	Fill color in 16-bit RGB565 format
bWidth	Additional border width in pixels: 0: No additional width (1-pixel wide border)

Overview

Other values specify additional border width

sbDirection — Position of the additional border relative to the rectangle:

1: Outward
-1: Inward
Other values are ignored if there is no additional width

Draws a rectangle with rounded corners between two opposite vertices, with options for solid fill, additional border width, and direction of the border.

Example

TftSetUp(0, 0)

TftResetScreen(BLACK)

TftRectangle(10,10,65,50,0,GREEN,2,-1)

TftRectangleENTC(80,10,120,50,RED)

TftRectangleETTCO(130,10,200,50,BLUE,3)

TftRectangleETTCI(210,10,280,50,WHITE,4)

TftRectangleSNTC(10,60,65,100,CYAN)

TftRectangleENCP(110,100,60,50,PINK)

TftRectangleETCPO(180,100,60,50,VIOLET,3)

TftRectangleETCPI(270,100,60,50,BROWN,3)

TftRectangleSNCP(50,210,60,50,YELLOW)

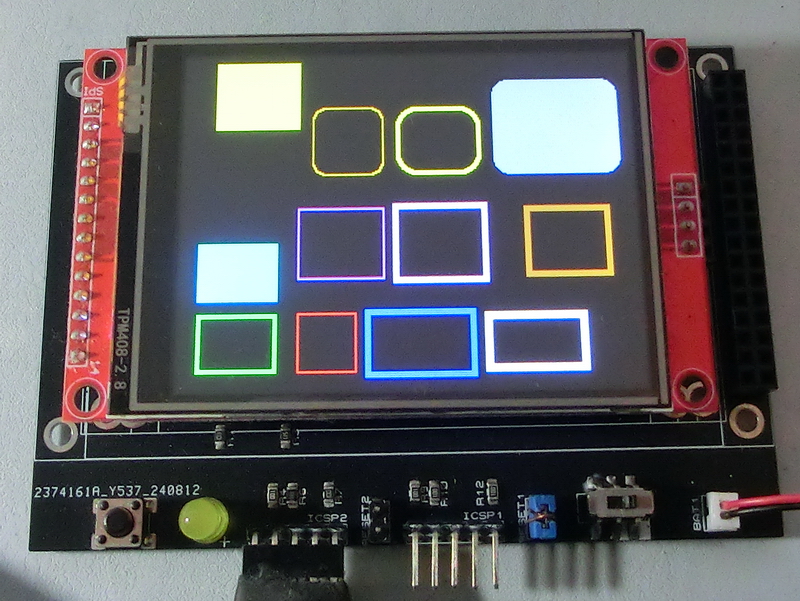

TftRectangleRC(90,150,140,200,10,0,ORANGE,0,0)

TftRectangleRC(150,150,210,200,15,0,LEMON,2,-1)

TftRectangleRC(220,150,310,220,12,1,DARKGREY,0,0)

TftRectangleRC()
