ISin

Syntax

Assignment Variable = ISin(pVariable)

Overview

Deduce the integer Sine of an integer value

Parameter

pVariable can be a constant, variable or expression that requires the Sine extracted. The value expected and returned by ISin is in decimal radians (0 to 255). Assignment Variable can be any valid variable type.

Example

Device = 24FJ64GA002           ' Select the device to compile for
Declare Xtal = 16      ' Tell the compiler the device will be operating at 16MHz

Declare Hserial_Baud = 9600    ' USART1 Baud rate
Declare Hrsout1_Pin = PORTB.14 ' Select the pin for TX with USART1

Dim ByteIn as Byte             ' Holds the value to Sin
Dim ByteOut as Byte             ' Holds the result of the Sin

PPS_Output(cOut_Pin_RP14, cOut_Fn_U1TX)  ' Make Pin RB14 U1TX

ByteIn = 123                   ' Load the variable
ByteOut = ISin(ByteIn)        ' Extract the integer Sin of the value
HrsoutLn Dec ByteOut           ' Display the result

Note.

When implementing trigonometry, or other built in, functions within an expression, always wrap them in parenthesis, otherwise the parser may consider the extra operands as part of the trigonometry parameter and produce an incorrect result. For example:

MyAssignment = (ISin(MyVar1)) + MyVar2

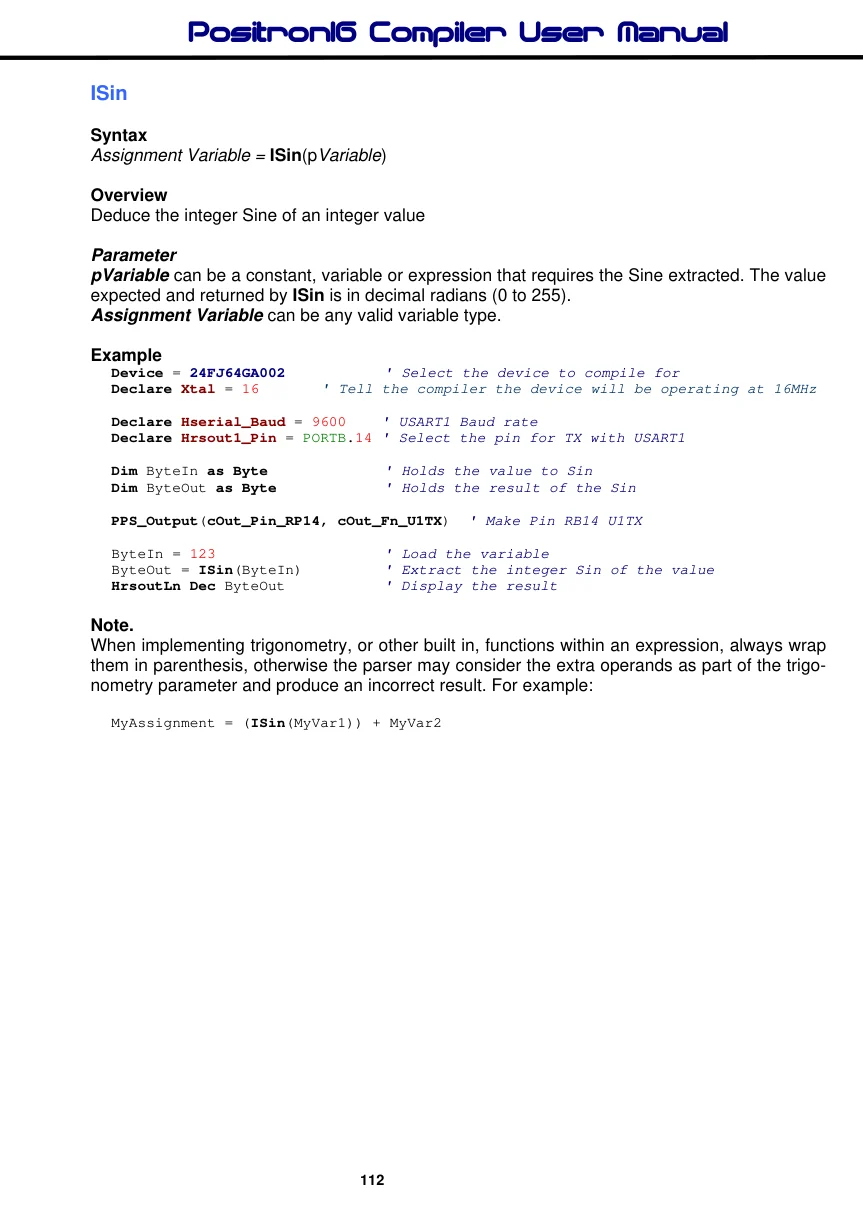

View original PDF page 112
