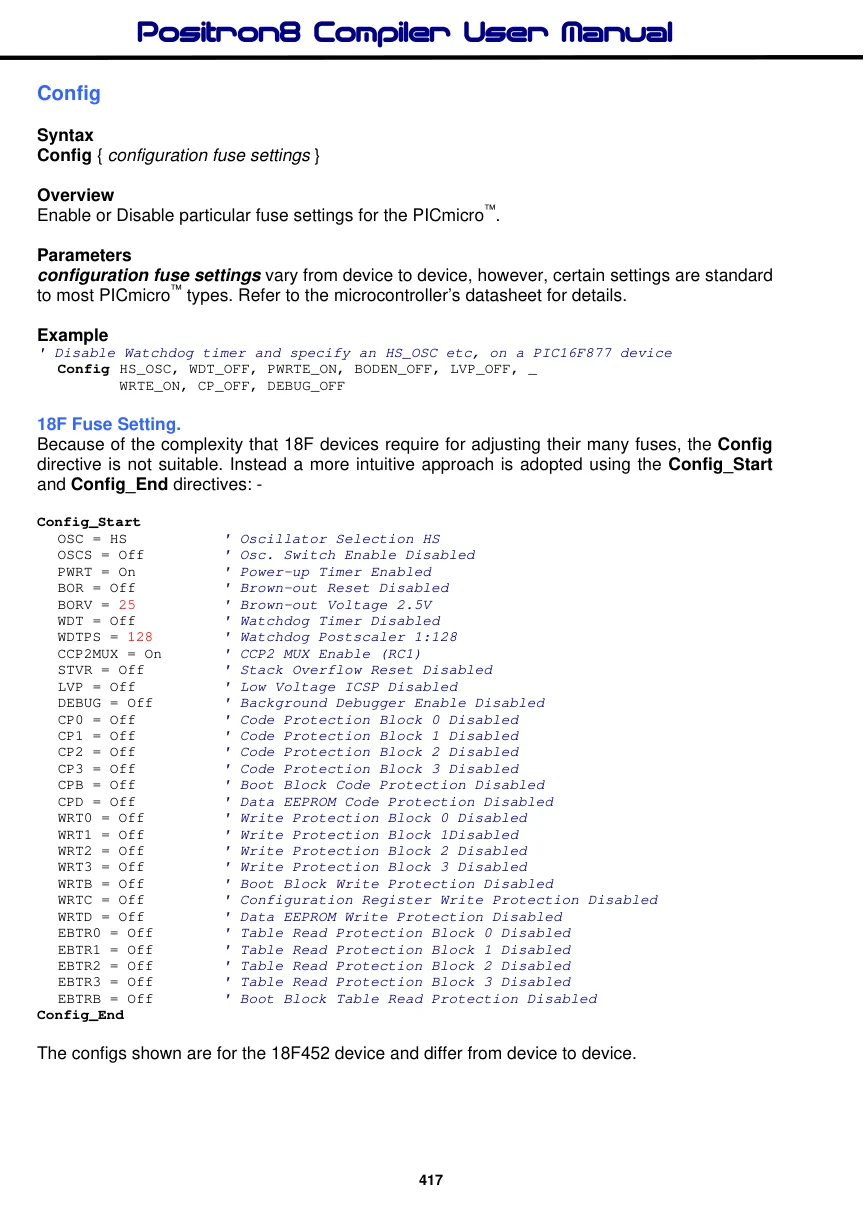

Config
Syntax
Config { configuration fuse settings }
Overview
Enable or Disable particular fuse settings for the PICmicro™.
Parameters
configuration fuse settings vary from device to device, however, certain settings are standard to most PICmicro™ types. Refer to the microcontroller’s datasheet for details.
Example
' Disable Watchdog timer and specify an HS_OSC etc, on a PIC16F877 device
Config HS_OSC, WDT_OFF, PWRTE_ON, BODEN_OFF, LVP_OFF, _
WRTE_ON, CP_OFF, DEBUG_OFF
18F Fuse Setting.
Because of the complexity that 18F devices require for adjusting their many fuses, the Config directive is not suitable. Instead a more intuitive approach is adopted using the Config_Start and Config_End directives: -
Config_Start
OSC = HS
' Oscillator Selection HS
OSCS = Off
' Osc. Switch Enable Disabled
PWRT = On
' Power-up Timer Enabled
BOR = Off
' Brown-out Reset Disabled
BORV = 25
' Brown-out Voltage 2.5V
WDT = Off
' Watchdog Timer Disabled
WDTPS = 128
' Watchdog Postscaler 1:128
CCP2MUX = On
' CCP2 MUX Enable (RC1)
STVR = Off
' Stack Overflow Reset Disabled
LVP = Off
' Low Voltage ICSP Disabled
DEBUG = Off
' Background Debugger Enable Disabled
CP0 = Off
' Code Protection Block 0 Disabled
CP1 = Off
' Code Protection Block 1 Disabled
CP2 = Off
' Code Protection Block 2 Disabled
CP3 = Off
' Code Protection Block 3 Disabled
CPB = Off
' Boot Block Code Protection Disabled
CPD = Off
' Data EEPROM Code Protection Disabled
WRT0 = Off
' Write Protection Block 0 Disabled
WRT1 = Off
' Write Protection Block 1Disabled
WRT2 = Off
' Write Protection Block 2 Disabled
WRT3 = Off
' Write Protection Block 3 Disabled
WRTB = Off
' Boot Block Write Protection Disabled
WRTC = Off
' Configuration Register Write Protection Disabled
WRTD = Off
' Data EEPROM Write Protection Disabled
EBTR0 = Off
' Table Read Protection Block 0 Disabled
EBTR1 = Off
' Table Read Protection Block 1 Disabled
EBTR2 = Off
' Table Read Protection Block 2 Disabled
EBTR3 = Off
' Table Read Protection Block 3 Disabled
EBTRB = Off
' Boot Block Table Read Protection Disabled
Config_End

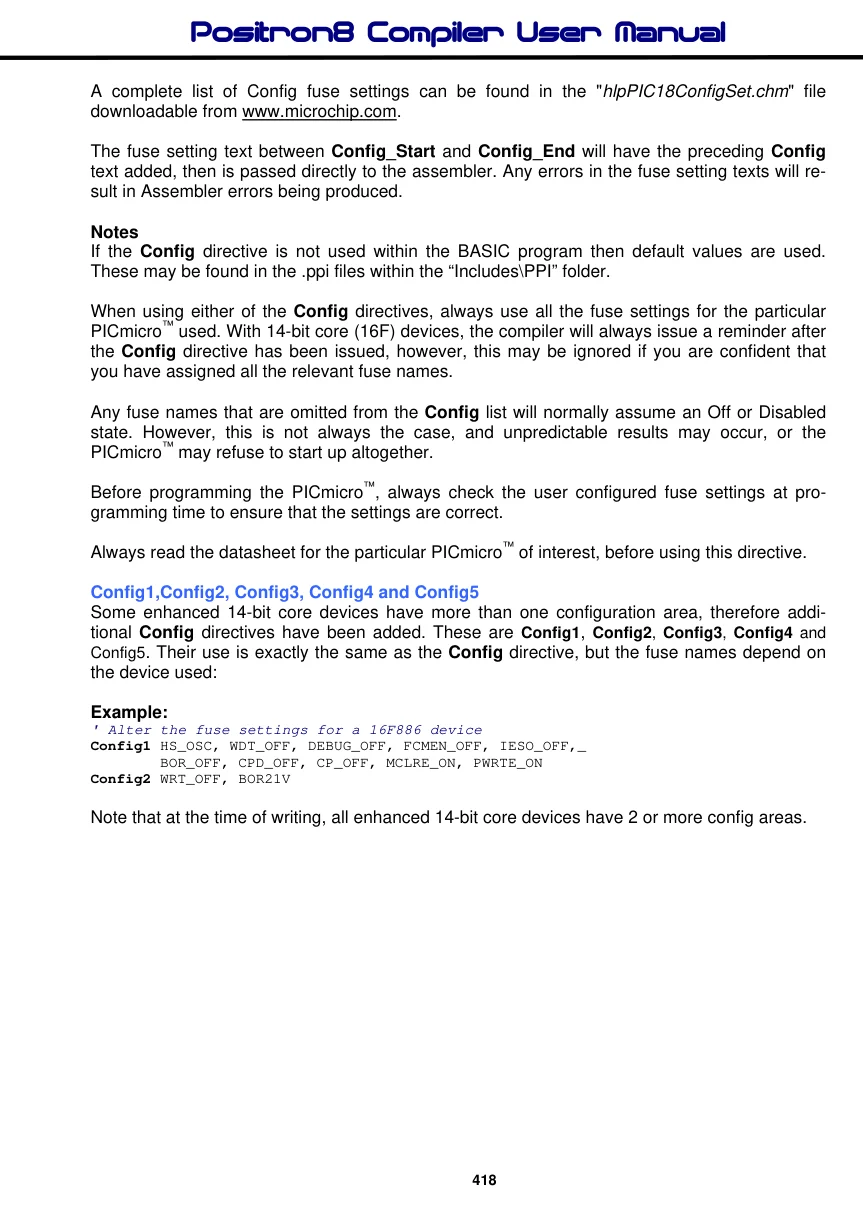

The configs shown are for the 18F452 device and differ from device to device. A complete list of Config fuse settings can be found in the "hlpPIC18ConfigSet.chm" file downloadable from www.microchip.com.
The fuse setting text between Config_Start and Config_End will have the preceding Config text added, then is passed directly to the assembler. Any errors in the fuse setting texts will result in Assembler errors being produced.
Notes
If the Config directive is not used within the BASIC program then default values are used. These may be found in the .ppi files within the “Includes\PPI” folder.
When using either of the Config directives, always use all the fuse settings for the particular PICmicro™ used. With 14-bit core (16F) devices, the compiler will always issue a reminder after the Config directive has been issued, however, this may be ignored if you are confident that you have assigned all the relevant fuse names.
Any fuse names that are omitted from the Config list will normally assume an Off or Disabled state. However, this is not always the case, and unpredictable results may occur, or the PICmicro™ may refuse to start up altogether.
Before programming the PICmicro™, always check the user configured fuse settings at programming time to ensure that the settings are correct.
Always read the datasheet for the particular PICmicro™ of interest, before using this directive.
