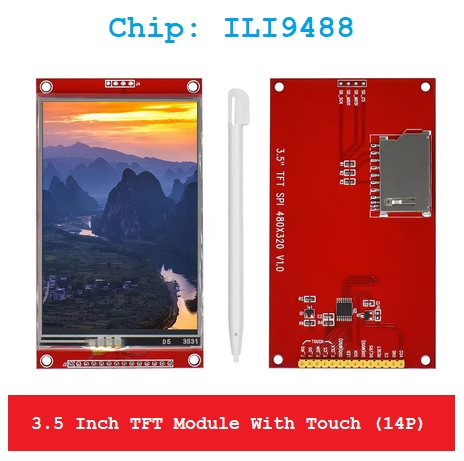

ILI9488

TESTED MODELS 1

- Fast SPI port

- MOSI and MISO lines available (screen write and read)

- Good screen scan refresh

- Somehow low contrast and brightness

- No 16b RGB565 support - had to add a built in driver conversion to 18b RGB888

- 480x320 pixels

- Can use 5v or 3.3v supply selected with a solderable jumper resistor (0 Ohm)

- SD Card slot available

- No SMT slot for FLASH memory soldering

Not Recommended

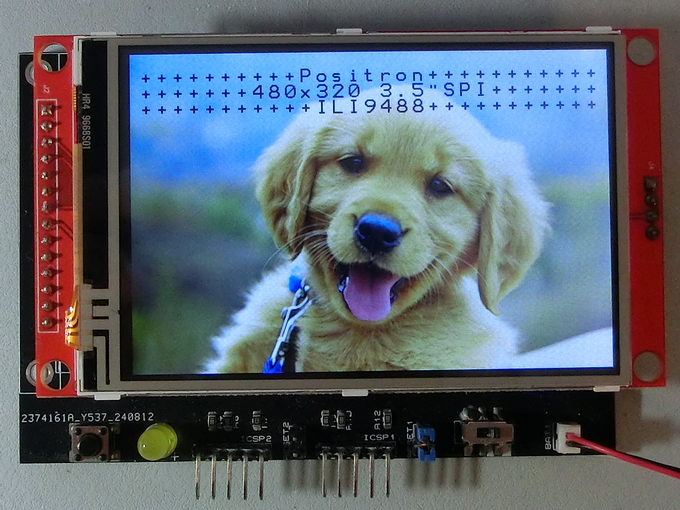

Note: The images may not accurately represent the screen's colors due to the limitations of a low-end camera.
