ST7796S

(datasheet)

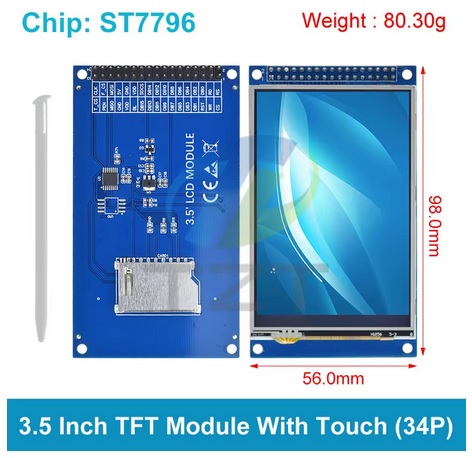

TESTED MODELS 1

- Fast Parallel port


- Good screen scan refresh


- Can write and read via Parallel port


- 16b RGB565 support


- Somehow low contrast


- 480x320 pixels


- Can use 5v or 3.3v supply selected with a solderable jumper resistor (0 Ohm)


- SD Card slot available


- SMT slot for FLASH memory soldering

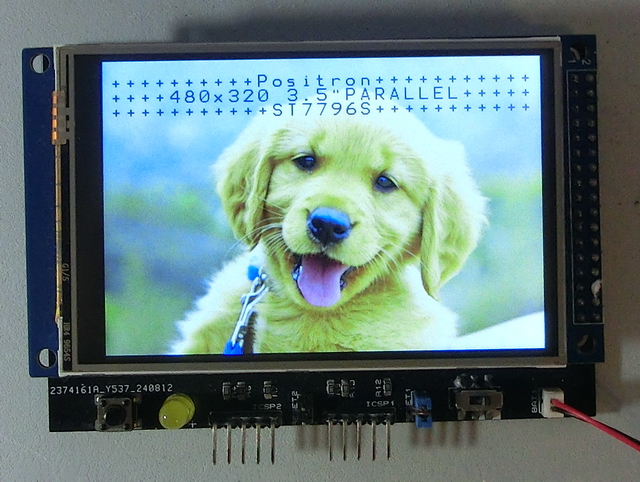

Good screen, except for the low contrast


Note: The images may not accurately represent the screen's colors due to the limitations of a low-end camera.
