ST7796S

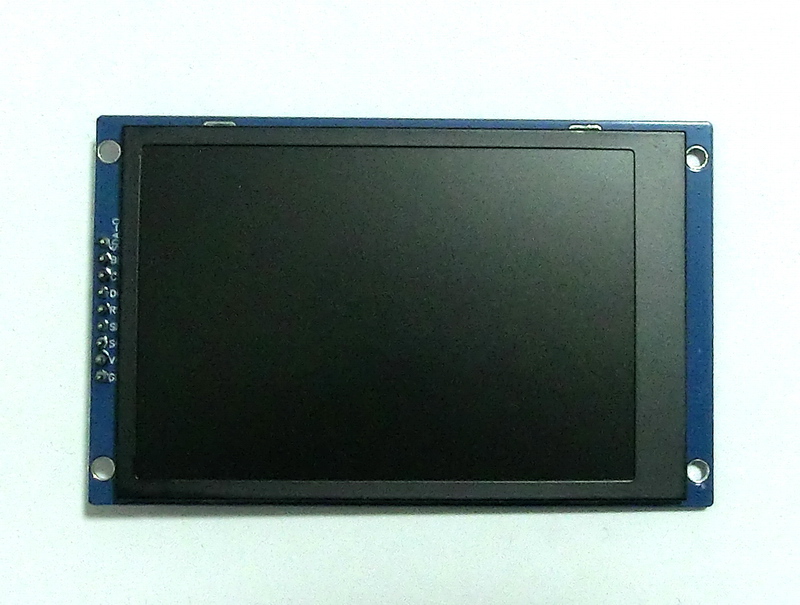

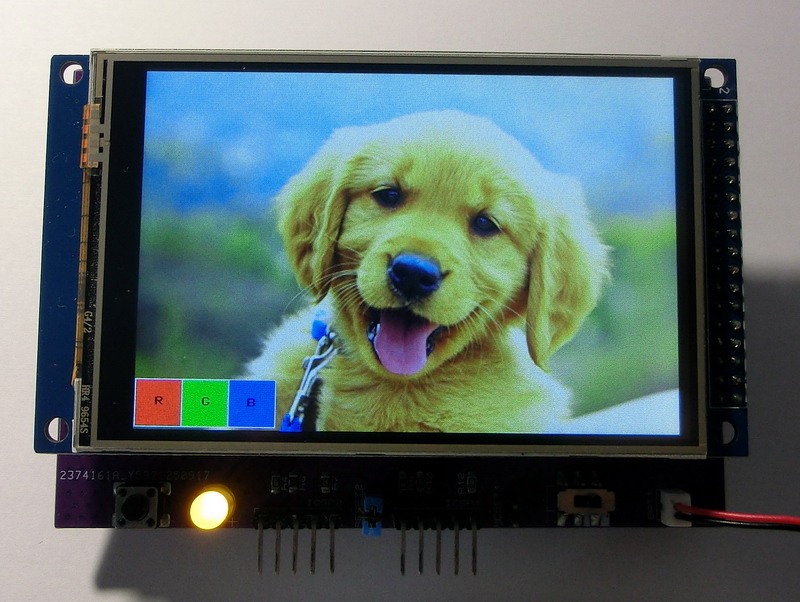

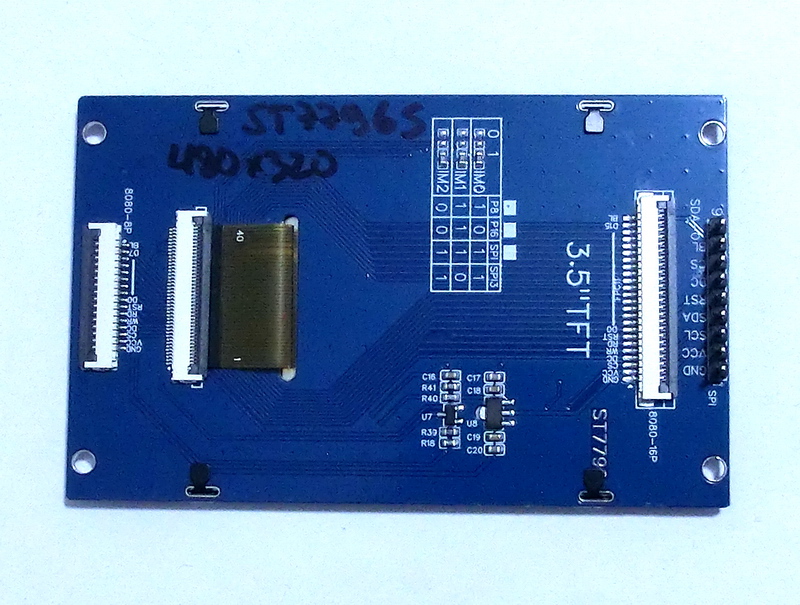

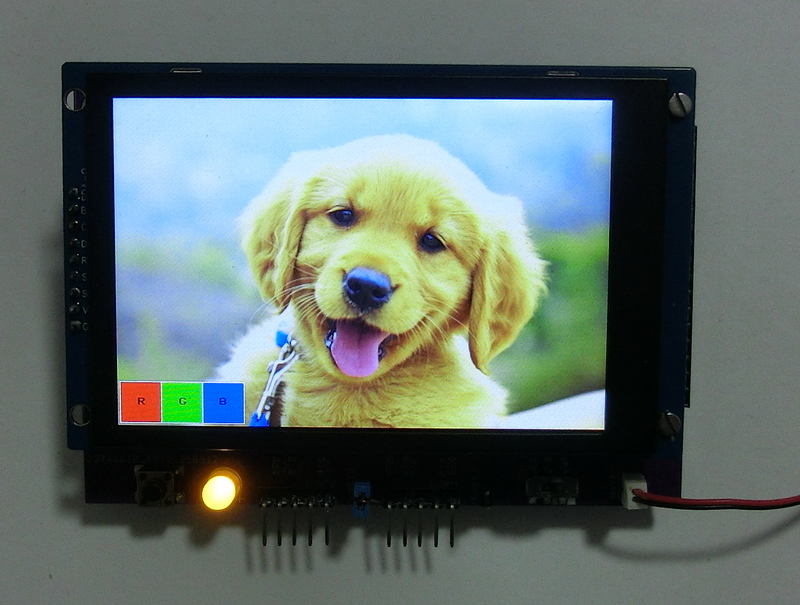

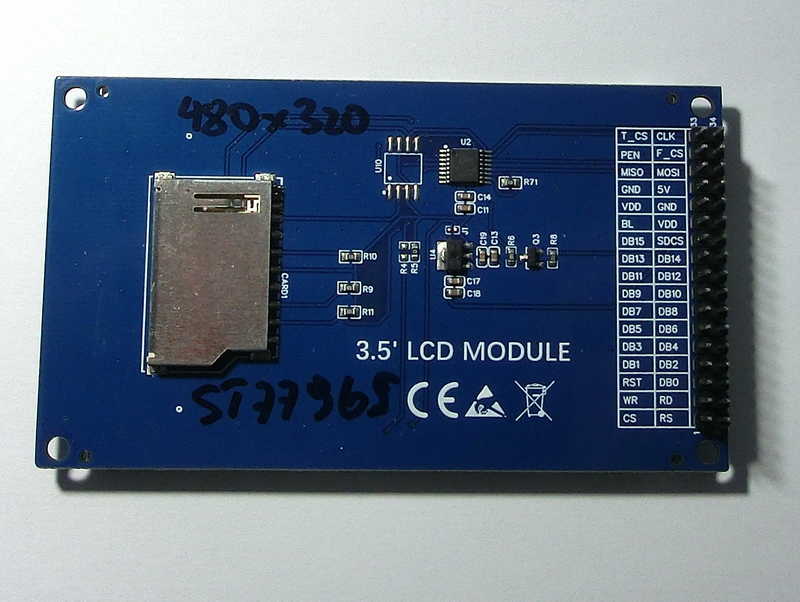

TESTED TFT MODULES

(The images may not accurately represent the screen's colors due to the limitations of a low-end camera)

• 480x320 pixels

• 3.5 inch

• 16b RGB565 support

• Touch screen

• Parallel interface

• TFT screen write and read

• Can use 5v or 3.3v supply selected with a solderable jumper resistor (0 Ohm)

• SD Card slot available

• FLASH memory slot available

• 480x320 pixels

• 3.5 inch

• 16b RGB565 support

• MOSI only as bi-directional line

• MISO line is not internally connected

• TFT screen write and read* (via bi-directional MOSI)

• 5v supply but works on 3.3v supply

• *Unstable pixel output with sporadic pixel corruption; cause not yet identified.
