TftRectangleETCPI()
… visits
TftRectangleETCPI(wX_Center As Word, wY_Center As Word, wRWidth As Word, wRHeight As Word, wColor As Word, bWidth As Byte)
|
Parameter |
Description |
|
wX_Center |
X-coordinate of the center point |
|
wY_Center |
Y-coordinate of the center point |
|
wRWidth |
Rectangle width |
|
wRHeight |
Rectangle height |
|
wColor |
Outline color in 16-bit RGB565 format |
|
bWidth |
Outline thickness in pixels: |
Draws an empty rectangle with an inward outline and specified thickness, centered at the given point and defined by the specified width and height.
|

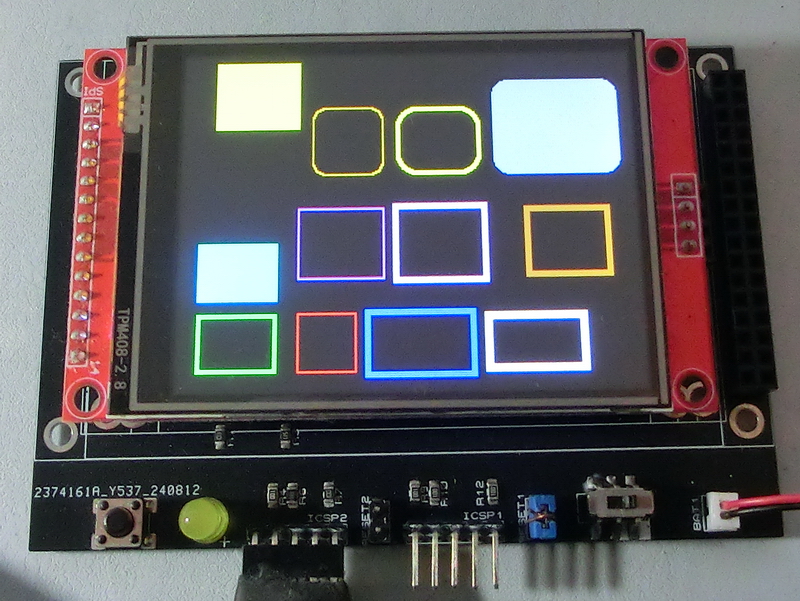

TftSetUp(0, 0) TftResetScreen(BLACK) TftRectangle(10,10,65,50,0,GREEN,2,-1) TftRectangleENTC(80,10,120,50,RED) TftRectangleETTCO(130,10,200,50,BLUE,3) TftRectangleETTCI(210,10,280,50,WHITE,4) TftRectangleSNTC(10,60,65,100,CYAN) TftRectangleENCP(110,100,60,50,PINK) TftRectangleETCPO(180,100,60,50,VIOLET,3) TftRectangleETCPI(270,100,60,50,BROWN,3) TftRectangleSNCP(50,210,60,50,YELLOW) TftRectangleRC(90,150,140,200,10,0,ORANGE,0,0) TftRectangleRC(150,150,210,200,15,0,LEMON,2,-1) TftRectangleRC(220,150,310,220,12,1,DARKGREY,0,0) |
|
