TftRectangleETCPO()

Library Description ›› Shapes ›› Rectangle ››
… visits
Parent Previous Next

Syntax

TftRectangleETCPO(wX_Center As Word, wY_Center As Word, wRWidth As Word, wRHeight As Word, wColor As Word, bWidth As Byte)

Parameters

Parameter

Description

wX_Center

X-coordinate of the center point

wY_Center

Y-coordinate of the center point

wRWidth

Rectangle width

wRHeight

Rectangle height

wColor

Outline color in 16-bit RGB565 format

bWidth

Outline thickness in pixels:
0: No additional width (1-pixel outline)

Overview

Draws an empty rectangle with an outward outline and specified thickness, centered at the given point and defined by the specified width and height.

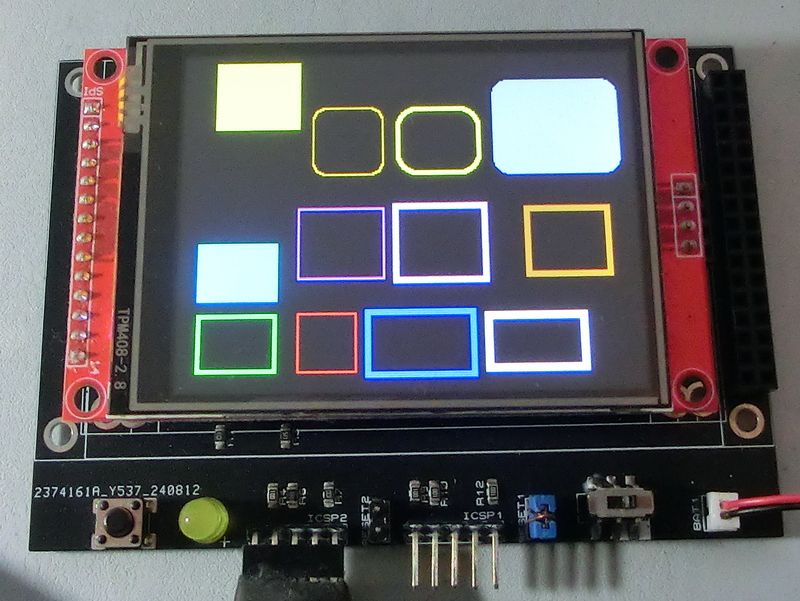

Example

TftSetUp(0, 0)

TftResetScreen(BLACK)

TftRectangle(10,10,65,50,0,GREEN,2,-1)

TftRectangleENTC(80,10,120,50,RED)

TftRectangleETTCO(130,10,200,50,BLUE,3)

TftRectangleETTCI(210,10,280,50,WHITE,4)

TftRectangleSNTC(10,60,65,100,CYAN)

TftRectangleENCP(110,100,60,50,PINK)

TftRectangleETCPO(180,100,60,50,VIOLET,3)

TftRectangleETCPI(270,100,60,50,BROWN,3)

TftRectangleSNCP(50,210,60,50,YELLOW)

TftRectangleRC(90,150,140,200,10,0,ORANGE,0,0)

TftRectangleRC(150,150,210,200,15,0,LEMON,2,-1)

TftRectangleRC(220,150,310,220,12,1,DARKGREY,0,0)

TftRectangleETCPO()
