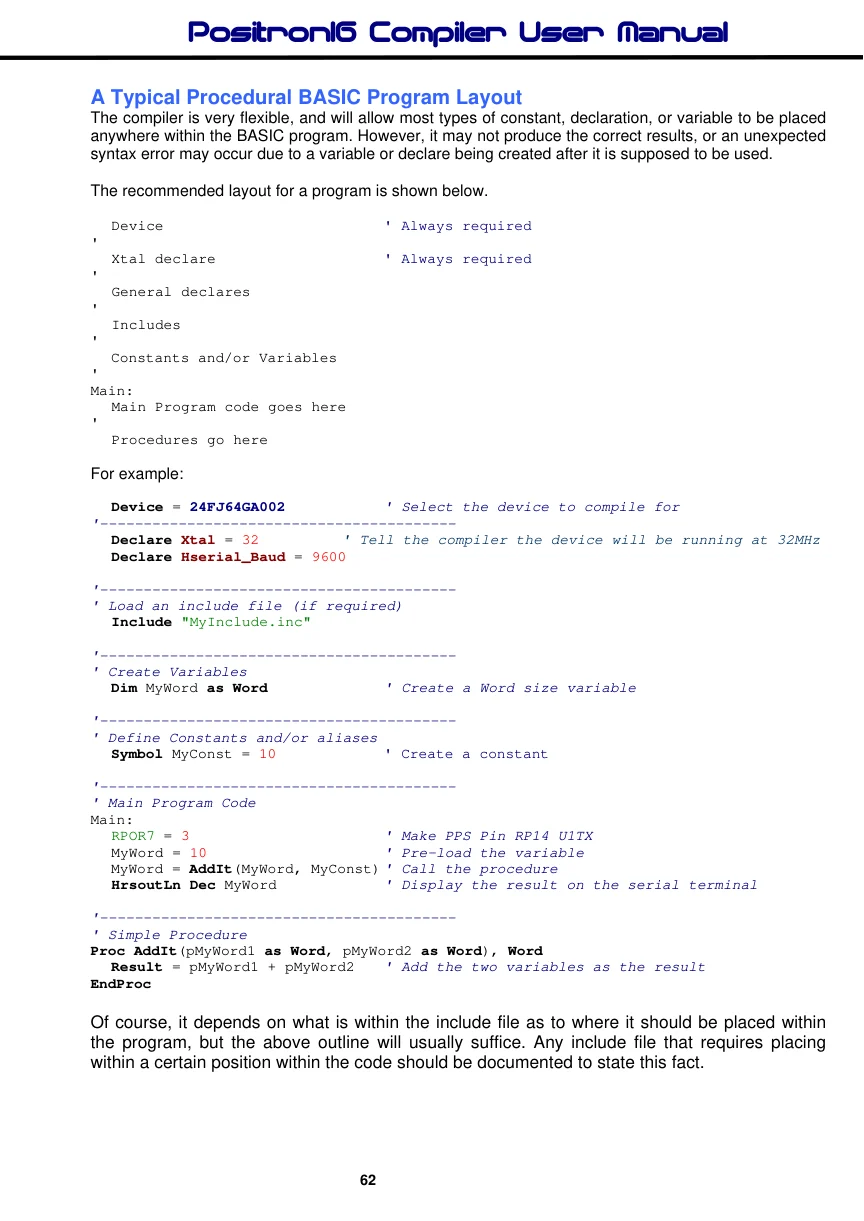

A Typical Procedural BASIC Program Layout

The compiler is very flexible, and will allow most types of constant, declaration, or variable to be placed anywhere within the BASIC program. However, it may not produce the correct results, or an unexpected syntax error may occur due to a variable or declare being created after it is supposed to be used.

The recommended layout for a program is shown below.

  Device
                                   ' Always required
'
  Xtal declare
                                   ' Always required
'
  General declares
'
  Includes
'
  Constants and/or Variables
'
Main:
  Main Program code goes here
'
  Procedures go here

For example:

  Device = 24FJ64GA002
                                   ' Select the device to compile for
'-----------------------------------------
  Declare Xtal = 32
                              ' Tell the compiler the device will be running at 32MHz
  Declare Hserial_Baud = 9600
'-----------------------------------------
' Load an include file (if required)
  Include "MyInclude.inc"
'-----------------------------------------
' Create Variables
  Dim MyWord as Word
                                   ' Create a Word size variable
'-----------------------------------------
' Define Constants and/or aliases
  Symbol MyConst = 10
                                   ' Create a constant
'-----------------------------------------
' Main Program Code
Main:
  RPOR7 = 3
                                   ' Make PPS Pin RP14 U1TX
  MyWord = 10
                                   ' Pre-load the variable
  MyWord = AddIt(MyWord, MyConst) ' Call the procedure
  HrsoutLn Dec MyWord
                                   ' Display the result on the serial terminal
'-----------------------------------------
' Simple Procedure
Proc AddIt(pMyWord1 as Word, pMyWord2 as Word), Word
  Result = pMyWord1 + pMyWord2
                                   ' Add the two variables as the result
EndProc

Of course, it depends on what is within the include file as to where it should be placed within the program, but the above outline will usually suffice. Any include file that requires placing within a certain position within the code should be documented to state this fact.
