Device

Syntax

Device Device type

Overview

Inform the compiler which microcontroller is being used.

Parameters

Device type can be a 12-bit, standard 14-bit, enhanced 14-bit or 18F device. If a PIC24 or dsPIC33 device is chosen, the compiler will automatically use the Positron24 application.

Example

Device = 16F1829      ' Produce code for a 16F1829 device

or

Device = 16F684      ' Produce code for a 16F684 device

or

Device = 12F508      ' Produce code for a 12-bit core 12F508 device

or

Device = 18F4520      ' Produce code for a 18F4520 device

Device should be the first command placed in the program.

If the Device directive is not used in the BASIC program, the code produced will default to the PIC18F25K20 device.

For an up-to-date list of compatible devices refer to the compiler’s PPI directory.

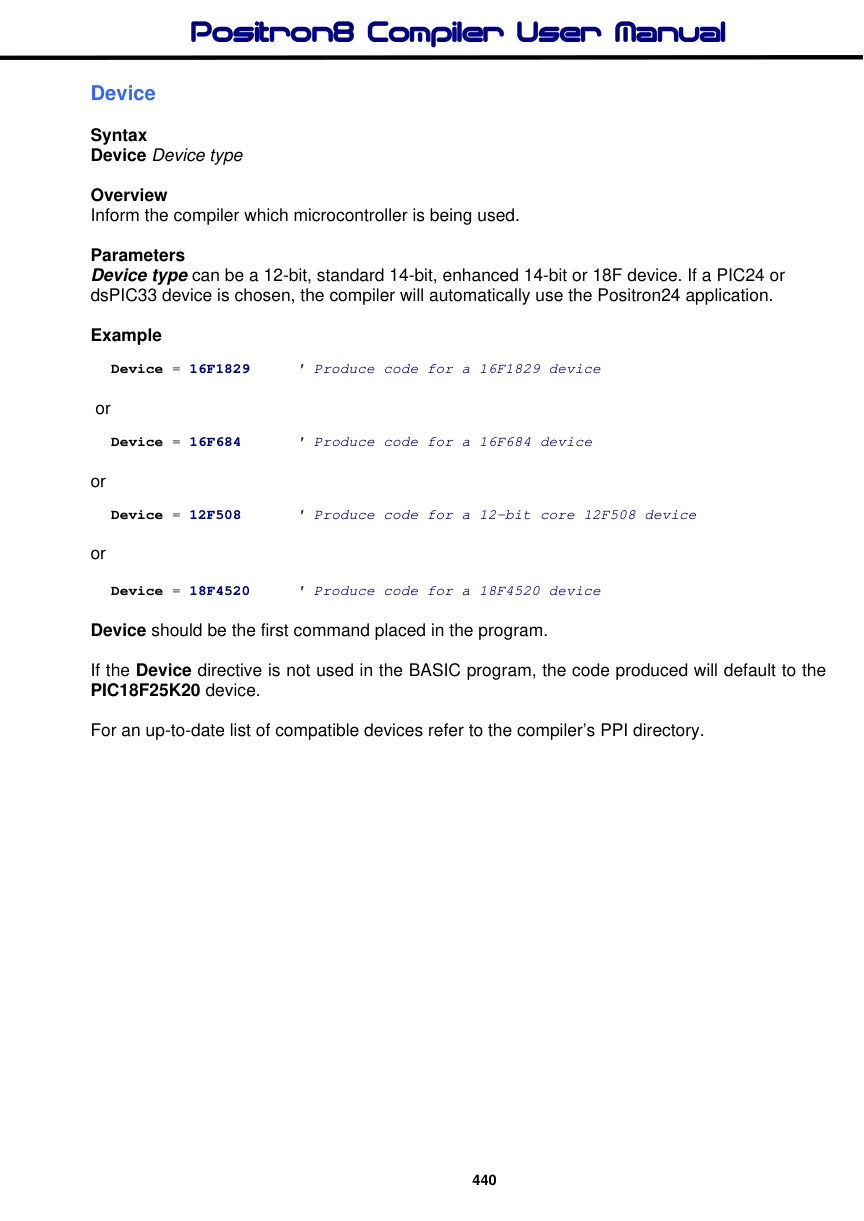

View original PDF page 440
