File_ChDir()
File_ChDir(pFileName), Bit
pFileName: The name of the directory to switch to. The directory name should be 8 characters or less, including the dot (.) and extension (if any). Example: "MyFolder", "Documents".
Result Bit: The result is a single bit indicating success or failure.
1: Success — the directory has been changed successfully.
0: Failure — the directory change was unsuccessful.
Change Directory
The File_ChDir() command allows you to change the current working directory to the specified directory. This is useful when you want to navigate between directories on the SD card for file operations such as reading or writing files.
Example:
File_ChDir("MyFolder")
When to Use:
• File_ChDir() is used when you want to navigate between directories on the SD card. It must be called before performing file operations like creating or reading files from the new directory.
• Ensure you handle errors (like trying to access a non-existent directory) when using this command to avoid unexpected issues.
Important Notes:
• Before calling File_ChDir(), you need to close any open files using File_Close() to ensure proper functioning.
• If you try to change to a non-existent directory or a directory that is in use, the operation will fail, and the result will be 0.
|

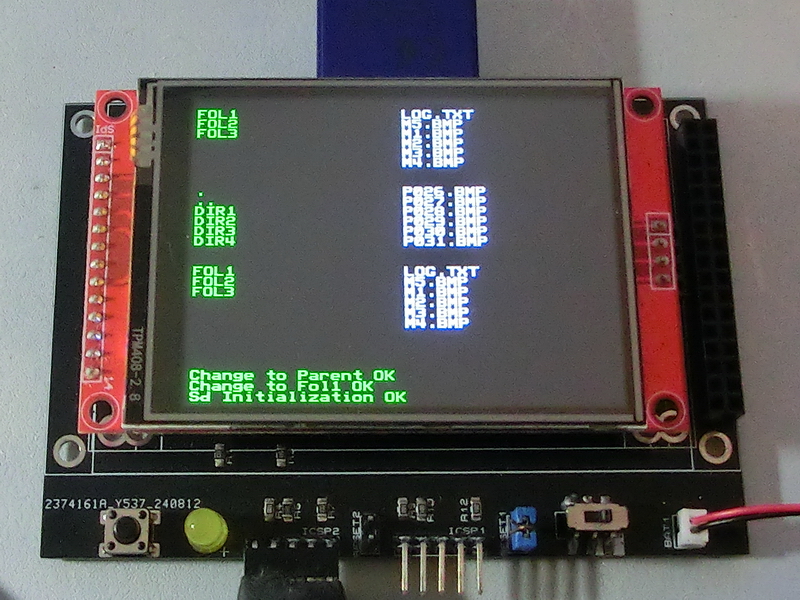

TftSetUp(0) 'Set screen TftResetScreen(BLACK) 'Reset screen TftSetSndFont(0,0) 'Set Font0 While File_Init() <> cErrOK : Wend 'Initialize SD Card TftPrintSndString("Sd Initialization OK",1,0,0,1,GREEN,BLACK,0) 'Confirm Initialize SD Card DisplayFolderFile(28) 'Call file/folder list Proc, set display row 28 If File_ChDir("Fol1") = 1 Then 'Change current folder to Fol1 TftPrintSndString("Change to Fol1 OK",1,0,1,1,GREEN,BLACK,0) 'Confirm change folder To Fol1 DisplayFolderFile(20) 'Call file/folder list Proc, Set display row 20 Else TftPrintSndString("Change to Fol1 Fail",1,0,1,1,GREEN,BLACK,0) 'Folder change fail EndIf If File_ChDirUp() = 1 Then 'Return to parent directory TftPrintSndString("Change to Parent OK",1,0,2,1,GREEN,BLACK,0) 'Confirm change to parent folder DisplayFolderFile(12) 'Call file/folder list Proc, Set display row 12 Else TftPrintSndString("Change to Parent Fail",1,0,2,1,GREEN,BLACK,0) 'Folder change to parent fail EndIf End Proc DisplayFolderFile(wY As Word) bCounter = wY File_ListReset() 'Reset file/folder counter Do Clear sString sString = File_ListDir() 'Loop through folder names If sString = 0 Then Break 'Break if end of list TftPrintSndString(sString,1,0,bCounter,1,GREEN,BLACK,0) 'Print folder name Dec bCounter 'Move to next print line Loop bCounter = wY 'Vertical print counter File_ListReset() 'Reset file/folder counter Do 'Loop through file names Clear sString sString = File_ListFile() If sString = 0 Then Break 'Break if end of list TftPrintSndString(sString,1,20,bCounter,1,WHITE,BLACK,0) 'Print folder name Dec bCounter 'Move to next print line Loop EndProc |
|
|
