File_OpenAt()

Parent Previous Next

File_OpenAt(pFileName, dPosition), Byte


pFileName: The name of the file to open (maximum length 12 characters, including dot and extension).

dPosition: The byte position within the file to move to before starting read or write operations.


Return Status:

• cErrOK: Success.

• cErrNotFound: File not found.

• cErrFileNotOpen: File was not previously opened.

• cErrBeyondEOF: Attempt to seek beyond the end of the file.

• cErrInUse: File number is already in use.

• cErrRWError: Read/write error.


Open a File at a Specific Position


This procedure opens an existing file for reading or writing at a specified position. The maximum name length is 12 characters, including the file extension.


Example:

File_OpenAt("MyFile.txt", 25)


Notes:

• Before reading or writing to a file, it must be opened using File_OpenAt().

• The file pointer is moved to the specified position (dPosition) within the file.

• You can either read or modify the file starting from the specified position.

• After finishing, close the file with File_Close() before reopening it.

• The File_OpenAt() command will also update the file's Modified property. If you don’t set new values with File_TimeModified(), the default current values will be used.

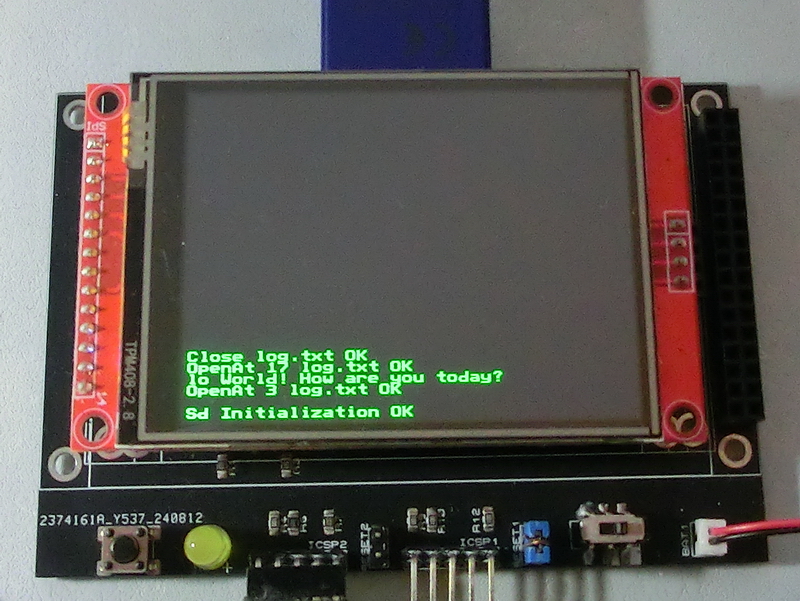

TftSetUp(0)                                                                                 'Set screen

TftResetScreen(BLACK)                                                                       'Reset screen

TftSetSndFont(0,0)                                                                          'Set Font0

While File_Init() <> cErrOK : Wend                                                          'Initialize SD Card

TftPrintSndString("Sd Initialization OK",1,0,0,1,GREEN,BLACK,0)                             'Confirm Initialize SD Card

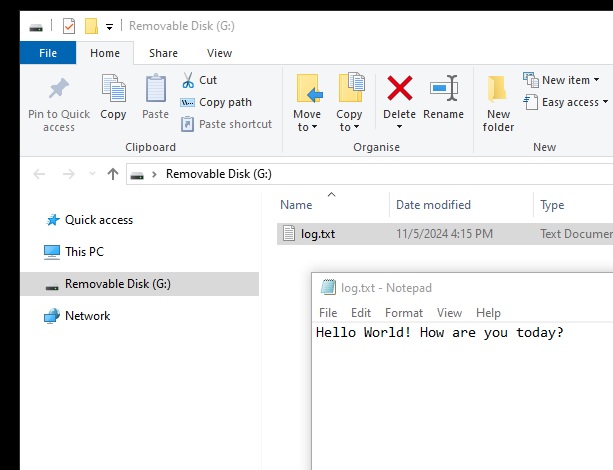

While File_OpenAt("log.txt",3) <> cErrOK : Wend                                             'Open file Log.txt to read data from position 3

TftPrintSndString("OpenAt 3 log.txt OK",1,0,2,1,GREEN,BLACK,0)                              'Confirm Log.txt is open

bCounter = 0                                                                                'Print position counter

Do

    TftPrintSndChar(File_ReadByte(),1,bCounter,3,1,GREEN,BLACK,0)                           'Print data as text

    If File_EOF() = 1 Then Break                                                            'Loop till end of file

    Inc bCounter

Loop

File_Close()                                                                                'Close file

While File_OpenAt("log.txt",17) <> cErrOK : Wend                                            'Open file Log.txt to read data from position 17

TftPrintSndString("OpenAt 17 log.txt OK",1,0,4,1,GREEN,BLACK,0)                             'Confirm Log.txt is open

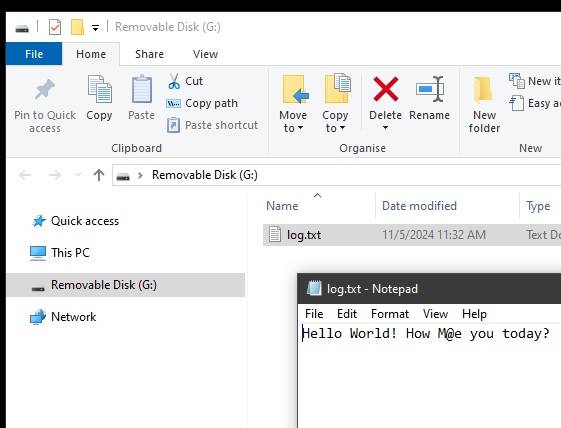

File_WriteByte("M")                                                                         'Write M at position 17

File_WriteByte("@")                                                                         'Write @ at position 18

File_TimeModified(5,11,24, 11,32,55)                                                        'Set modified property

File_Close()                                                                                'Close file

TftPrintSndString("Close log.txt OK",1,0,5,1,GREEN,BLACK,0)                                 'Confirm Log.txt is closed
