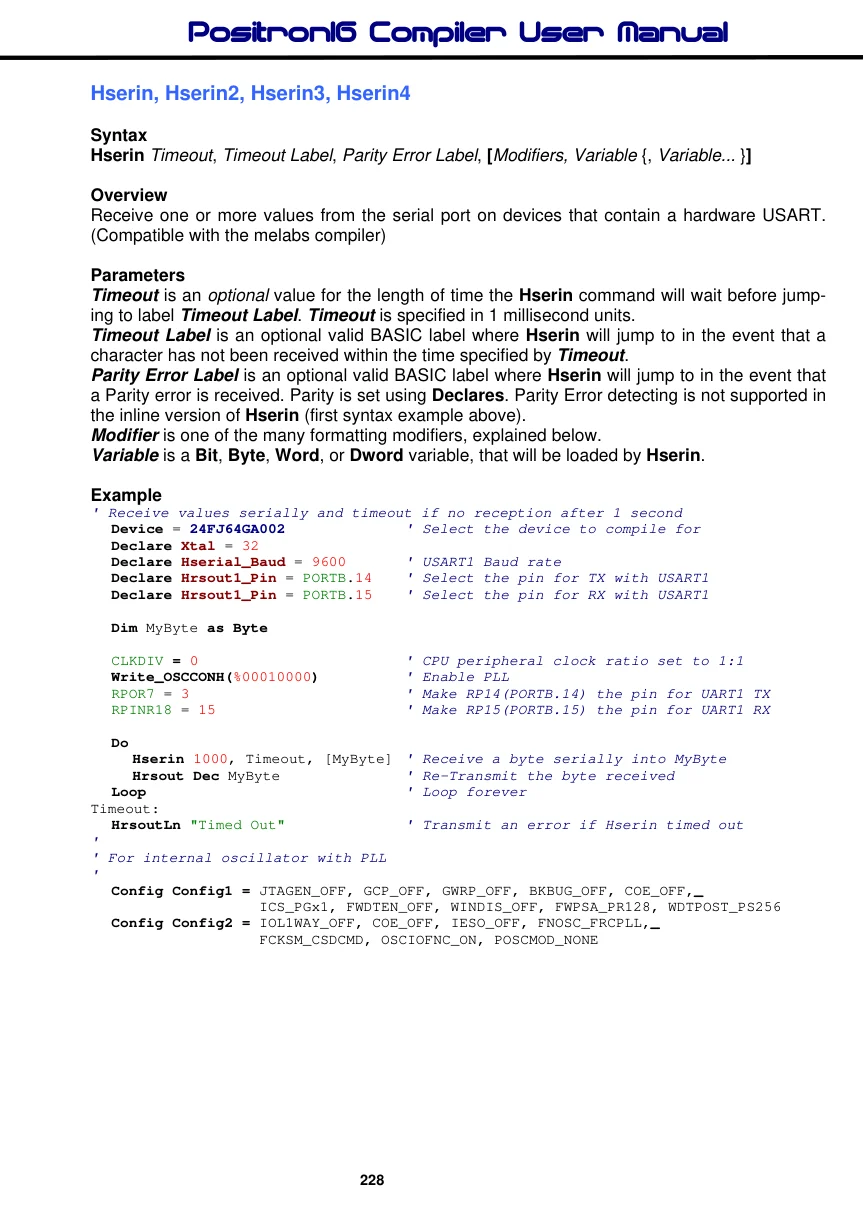

Hserin, Hserin2, Hserin3, Hserin4
Syntax
Hserin Timeout, Timeout Label, Parity Error Label, [Modifiers, Variable {, Variable... }]
Overview
Receive one or more values from the serial port on devices that contain a hardware USART. (Compatible with the melabs compiler)
Parameters
Timeout is an optional value for the length of time the Hserin command will wait before jumping to label Timeout Label. Timeout is specified in 1 millisecond units. Timeout Label is an optional valid BASIC label where Hserin will jump to in the event that a character has not been received within the time specified by Timeout. Parity Error Label is an optional valid BASIC label where Hserin will jump to in the event that a Parity error is received. Parity is set using Declares. Parity Error detecting is not supported in the inline version of Hserin (first syntax example above). Modifier is one of the many formatting modifiers, explained below. Variable is a Bit, Byte, Word, or Dword variable, that will be loaded by Hserin.
Example
' Receive values serially and timeout if no reception after 1 second
Device = 24FJ64GA002 ' Select the device to compile for
Declare Xtal = 32
Declare Hserial_Baud = 9600 ' USART1 Baud rate
Declare Hrsout1_Pin = PORTB.14 ' Select the pin for TX with USART1
Declare Hrsout1_Pin = PORTB.15 ' Select the pin for RX with USART1
Dim MyByte as Byte
CLKDIV = 0 ' CPU peripheral clock ratio set to 1:1
Write_OSCCONH(%00010000) ' Enable PLL
RPOR7 = 3 ' Make RP14(PORTB.14) the pin for UART1 TX
RPINR18 = 15 ' Make RP15(PORTB.15) the pin for UART1 RX
Do
Hserin 1000, Timeout, [MyByte] ' Receive a byte serially into MyByte
Hrsout Dec MyByte ' Re-Transmit the byte received
Loop ' Loop forever
Timeout:
HrsoutLn "Timed Out" ' Transmit an error if Hserin timed out
'
' For internal oscillator with PLL
'
Config Config1 = JTAGEN_OFF, GCP_OFF, GWRP_OFF, BKBUG_OFF, COE_OFF,_
ICS_PGx1, FWDTEN_OFF, WINDIS_OFF, FWPSA_PR128, WDTPOST_PS256
Config Config2 = IOL1WAY_OFF, COE_OFF, IESO_OFF, FNOSC_FRCPLL,_
FCKSM_CSDCMD, OSCIOFNC_ON, POSCMOD_NONE

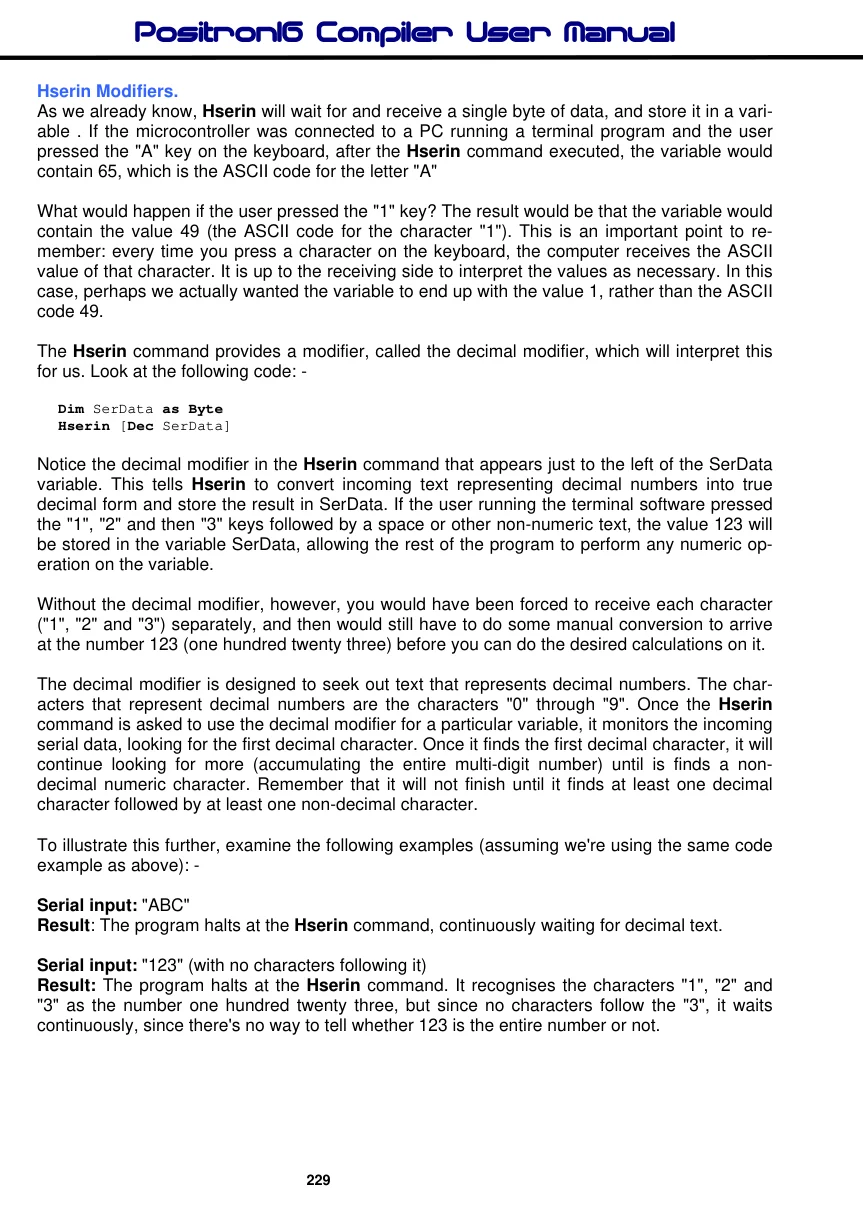

Hserin Modifiers.
As we already know, Hserin will wait for and receive a single byte of data, and store it in a variable . If the microcontroller was connected to a PC running a terminal program and the user pressed the "A" key on the keyboard, after the Hserin command executed, the variable would contain 65, which is the ASCII code for the letter "A"
What would happen if the user pressed the "1" key? The result would be that the variable would contain the value 49 (the ASCII code for the character "1"). This is an important point to remember: every time you press a character on the keyboard, the computer receives the ASCII value of that character. It is up to the receiving side to interpret the values as necessary. In this case, perhaps we actually wanted the variable to end up with the value 1, rather than the ASCII code 49.
The Hserin command provides a modifier, called the decimal modifier, which will interpret this for us. Look at the following code: -
Dim SerData as Byte
Hserin [Dec SerData]Notice the decimal modifier in the Hserin command that appears just to the left of the SerData variable. This tells Hserin to convert incoming text representing decimal numbers into true decimal form and store the result in SerData. If the user running the terminal software pressed the "1", "2" and then "3" keys followed by a space or other non-numeric text, the value 123 will be stored in the variable SerData, allowing the rest of the program to perform any numeric operation on the variable.
Without the decimal modifier, however, you would have been forced to receive each character ("1", "2" and "3") separately, and then would still have to do some manual conversion to arrive at the number 123 (one hundred twenty three) before you can do the desired calculations on it.
The decimal modifier is designed to seek out text that represents decimal numbers. The characters that represent decimal numbers are the characters "0" through "9". Once the Hserin command is asked to use the decimal modifier for a particular variable, it monitors the incoming serial data, looking for the first decimal character. Once it finds the first decimal character, it will continue looking for more (accumulating the entire multi-digit number) until is finds a nondecimal numeric character. Remember that it will not finish until it finds at least one decimal character followed by at least one non-decimal character.
To illustrate this further, examine the following examples (assuming we're using the same code example as above): -
Serial input: "ABC" Result: The program halts at the Hserin command, continuously waiting for decimal text.
Serial input: "123" (with no characters following it) Result: The program halts at the Hserin command. It recognises the characters "1", "2" and "3" as the number one hundred twenty three, but since no characters follow the "3", it waits continuously, since there's no way to tell whether 123 is the entire number or not.

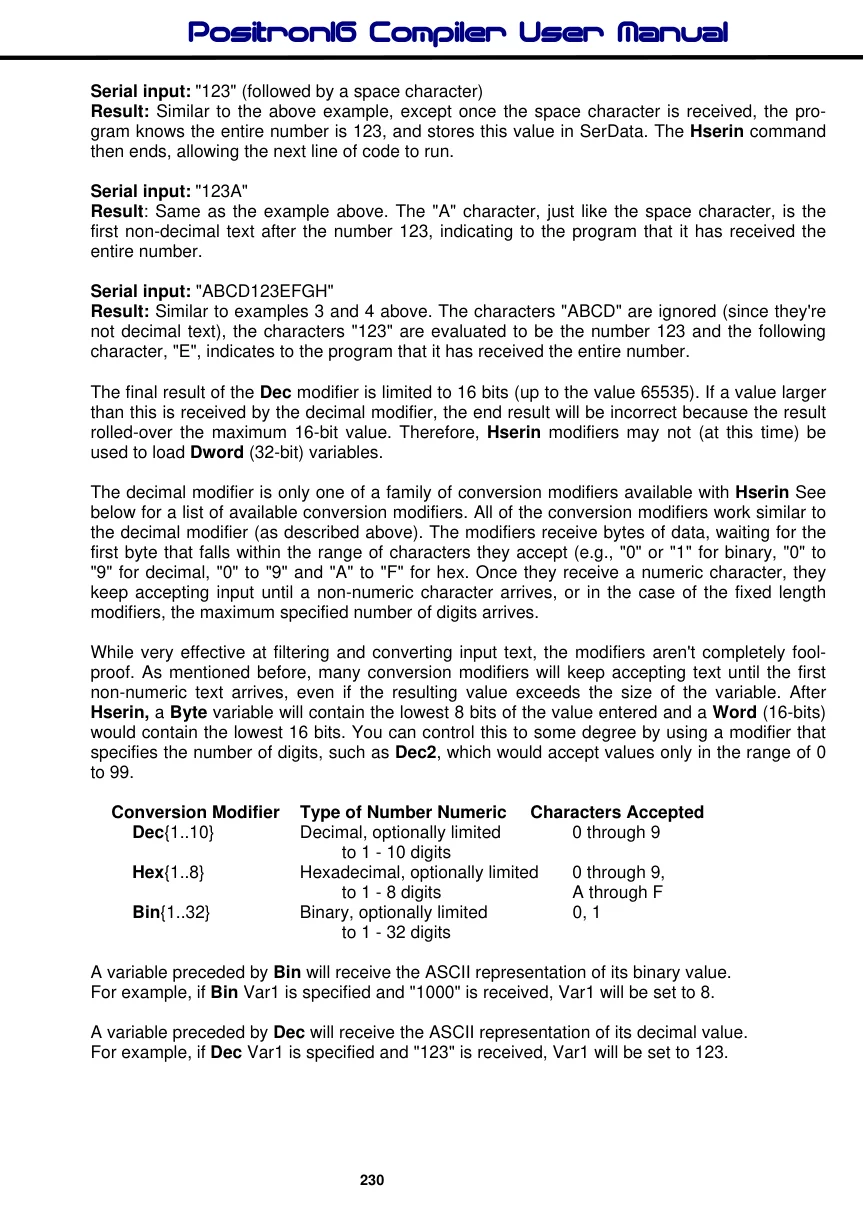

Serial input: "123" (followed by a space character) Result: Similar to the above example, except once the space character is received, the program knows the entire number is 123, and stores this value in SerData. The Hserin command then ends, allowing the next line of code to run.
Serial input: "123A" Result: Same as the example above. The "A" character, just like the space character, is the first non-decimal text after the number 123, indicating to the program that it has received the entire number.
Serial input: "ABCD123EFGH" Result: Similar to examples 3 and 4 above. The characters "ABCD" are ignored (since they're not decimal text), the characters "123" are evaluated to be the number 123 and the following character, "E", indicates to the program that it has received the entire number.
The final result of the Dec modifier is limited to 16 bits (up to the value 65535). If a value larger than this is received by the decimal modifier, the end result will be incorrect because the result rolled-over the maximum 16-bit value. Therefore, Hserin modifiers may not (at this time) be used to load Dword (32-bit) variables.
The decimal modifier is only one of a family of conversion modifiers available with Hserin See below for a list of available conversion modifiers. All of the conversion modifiers work similar to the decimal modifier (as described above). The modifiers receive bytes of data, waiting for the first byte that falls within the range of characters they accept (e.g., "0" or "1" for binary, "0" to "9" for decimal, "0" to "9" and "A" to "F" for hex. Once they receive a numeric character, they keep accepting input until a non-numeric character arrives, or in the case of the fixed length modifiers, the maximum specified number of digits arrives.
While very effective at filtering and converting input text, the modifiers aren't completely foolproof. As mentioned before, many conversion modifiers will keep accepting text until the first non-numeric text arrives, even if the resulting value exceeds the size of the variable. After Hserin, a Byte variable will contain the lowest 8 bits of the value entered and a Word (16-bits) would contain the lowest 16 bits. You can control this to some degree by using a modifier that specifies the number of digits, such as Dec2, which would accept values only in the range of 0 to 99.
| Conversion Modifier Type of Number Numeric | Characters Accepted | |
| Dec{1..10} | Decimal, optionally limited | 0 through 9 |
to 1 - 10 digits
| Hex{1..8} | Hexadecimal, optionally limited | 0 through 9, |
| to 1 - 8 digits | A through F | |
| Bin{1..32} | Binary, optionally limited | 0, 1 |
to 1 - 32 digits
A variable preceded by Bin will receive the ASCII representation of its binary value. For example, if Bin Var1 is specified and "1000" is received, Var1 will be set to 8.
A variable preceded by Dec will receive the ASCII representation of its decimal value. For example, if Dec Var1 is specified and "123" is received, Var1 will be set to 123.

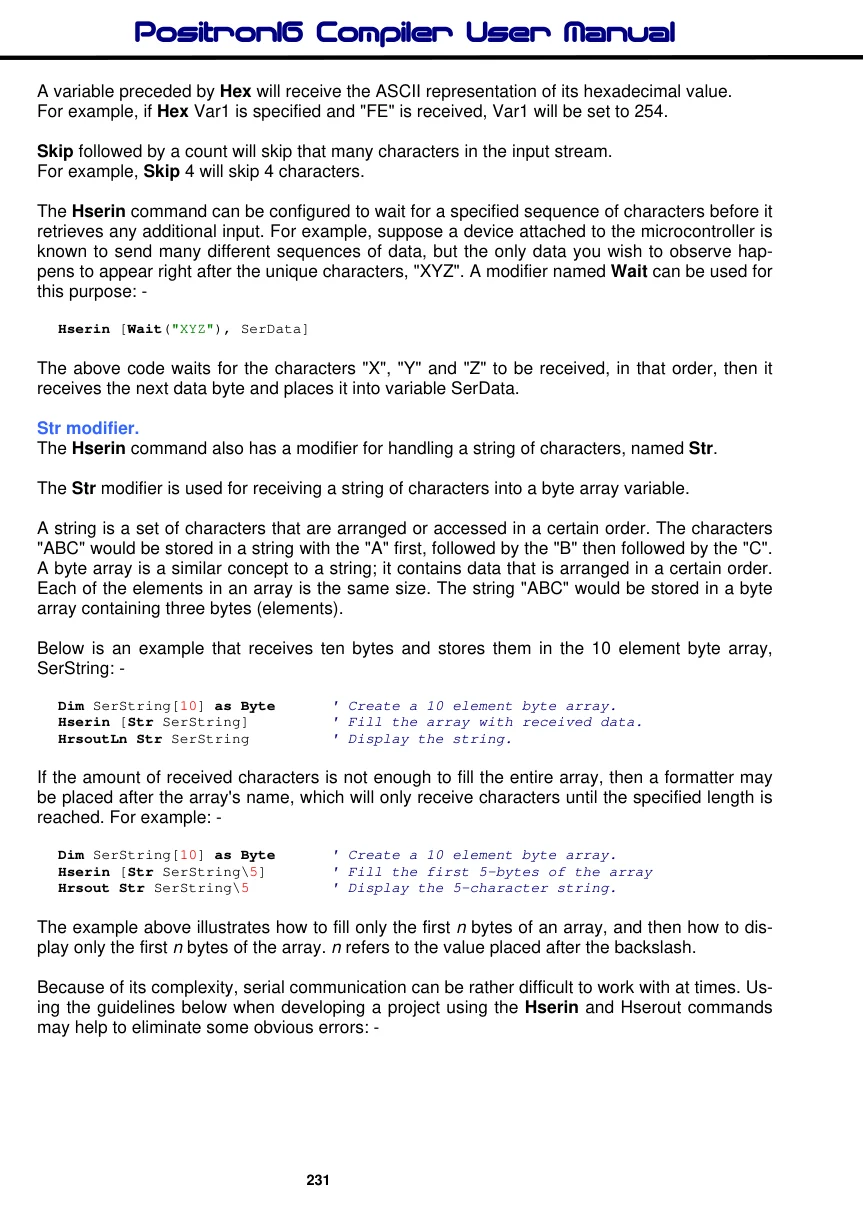

A variable preceded by Hex will receive the ASCII representation of its hexadecimal value. For example, if Hex Var1 is specified and "FE" is received, Var1 will be set to 254.
Skip followed by a count will skip that many characters in the input stream. For example, Skip 4 will skip 4 characters.
The Hserin command can be configured to wait for a specified sequence of characters before it retrieves any additional input. For example, suppose a device attached to the microcontroller is known to send many different sequences of data, but the only data you wish to observe happens to appear right after the unique characters, "XYZ". A modifier named Wait can be used for this purpose: -
Hserin [Wait("XYZ"), SerData]The above code waits for the characters "X", "Y" and "Z" to be received, in that order, then it receives the next data byte and places it into variable SerData.
Str modifier.
The Hserin command also has a modifier for handling a string of characters, named Str.
The Str modifier is used for receiving a string of characters into a byte array variable.
A string is a set of characters that are arranged or accessed in a certain order. The characters "ABC" would be stored in a string with the "A" first, followed by the "B" then followed by the "C". A byte array is a similar concept to a string; it contains data that is arranged in a certain order. Each of the elements in an array is the same size. The string "ABC" would be stored in a byte array containing three bytes (elements).
Below is an example that receives ten bytes and stores them in the 10 element byte array, SerString: -
Dim SerString[10] as Byte ' Create a 10 element byte array.
Hserin [Str SerString] ' Fill the array with received data.
HrsoutLn Str SerString ' Display the string.If the amount of received characters is not enough to fill the entire array, then a formatter may be placed after the array's name, which will only receive characters until the specified length is reached. For example: -
Dim SerString[10] as Byte ' Create a 10 element byte array.
Hserin [Str SerString\5] ' Fill the first 5-bytes of the array
Hrsout Str SerString\5 ' Display the 5-character string.The example above illustrates how to fill only the first n bytes of an array, and then how to display only the first n bytes of the array. n refers to the value placed after the backslash.
Because of its complexity, serial communication can be rather difficult to work with at times. Using the guidelines below when developing a project using the Hserin and Hserout commands may help to eliminate some obvious errors: -

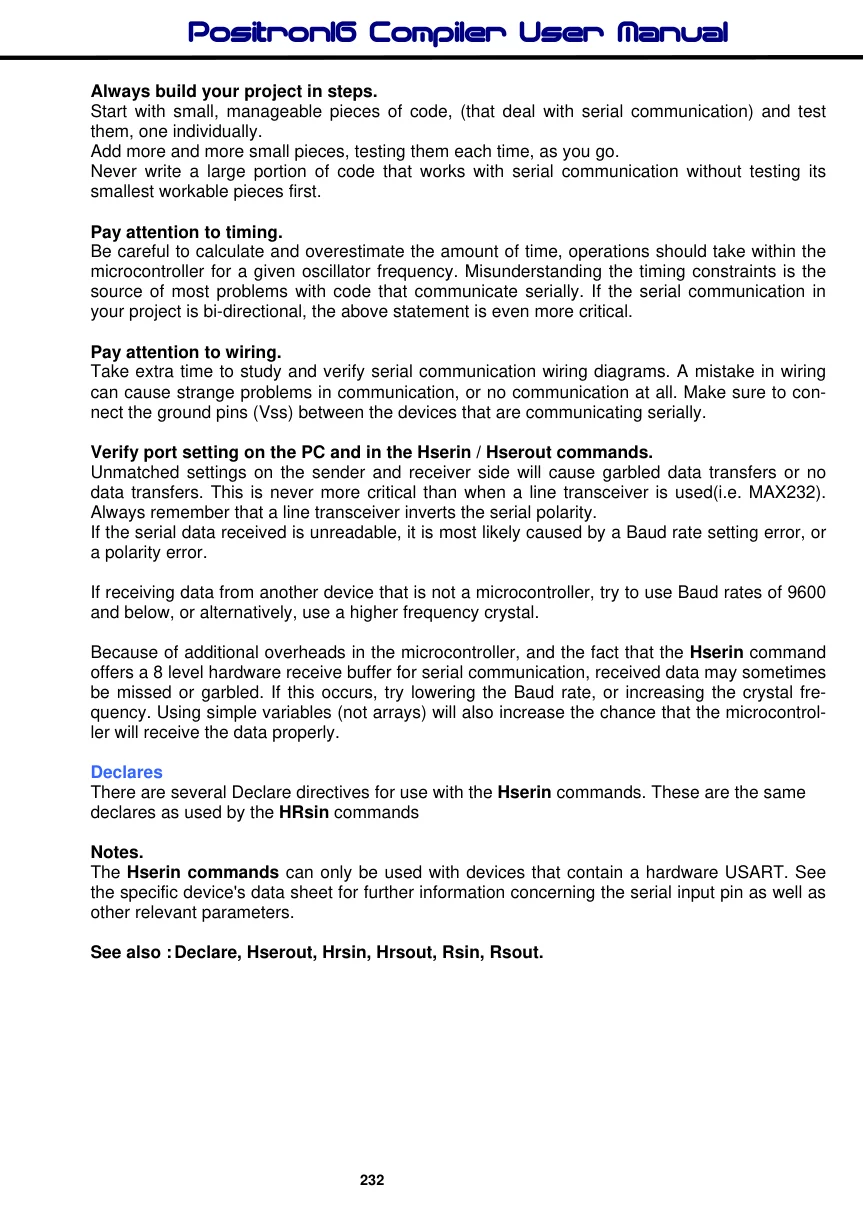

Always build your project in steps. Start with small, manageable pieces of code, (that deal with serial communication) and test them, one individually. Add more and more small pieces, testing them each time, as you go. Never write a large portion of code that works with serial communication without testing its smallest workable pieces first.
Pay attention to timing. Be careful to calculate and overestimate the amount of time, operations should take within the microcontroller for a given oscillator frequency. Misunderstanding the timing constraints is the source of most problems with code that communicate serially. If the serial communication in your project is bi-directional, the above statement is even more critical.
Pay attention to wiring. Take extra time to study and verify serial communication wiring diagrams. A mistake in wiring can cause strange problems in communication, or no communication at all. Make sure to connect the ground pins (Vss) between the devices that are communicating serially.
Verify port setting on the PC and in the Hserin / Hserout commands. Unmatched settings on the sender and receiver side will cause garbled data transfers or no data transfers. This is never more critical than when a line transceiver is used(i.e. MAX232). Always remember that a line transceiver inverts the serial polarity. If the serial data received is unreadable, it is most likely caused by a Baud rate setting error, or a polarity error.
If receiving data from another device that is not a microcontroller, try to use Baud rates of 9600 and below, or alternatively, use a higher frequency crystal.
Because of additional overheads in the microcontroller, and the fact that the Hserin command offers a 8 level hardware receive buffer for serial communication, received data may sometimes be missed or garbled. If this occurs, try lowering the Baud rate, or increasing the crystal frequency. Using simple variables (not arrays) will also increase the chance that the microcontroller will receive the data properly.
Declares
There are several Declare directives for use with the Hserin commands. These are the same declares as used by the HRsin commands
Notes.
The Hserin commands can only be used with devices that contain a hardware USART. See the specific device's data sheet for further information concerning the serial input pin as well as other relevant parameters.
