Freqout

Syntax

Freqout Pin, Period, Freq1 {, Freq2}

Overview

Generate one or two sine-wave tones, of differing or the same frequencies, for a specified period.

Parameters

Pin is a Port-Bit combination that specifies which I/O pin to use. Period may be a variable, constant, or expression (0 - 65535) specifying the amount of time to generate the tone(s). Freq1 may be a variable, constant, or expression (0 - 32767) specifying frequency of the first tone. Freq2 may be a variable, constant, or expression (0 - 32767) specifying frequency of the second tone. When specified, two frequencies will be mixed together on the same I/O pin.

Example

' Generate a 2500Hz (2.5KHz) tone for 1 second (1000 ms) on bit 0 of PORTA.
  Freqout PORTA.0, 1000, 2500

' Play two tones at once for 1000ms. One at 2.5KHz, the other at 3KHz.
  Freqout PORTA.0, 1000, 2500, 30000

Notes

Freqout generates one or two sine waves using a pulse-width modulation algorithm. Freqout will work with a 4MHz crystal, however, it is best used with higher frequency crystals, and operates accurately with a 20MHz crystal. The raw output from Freqout requires filtering, to elimi-

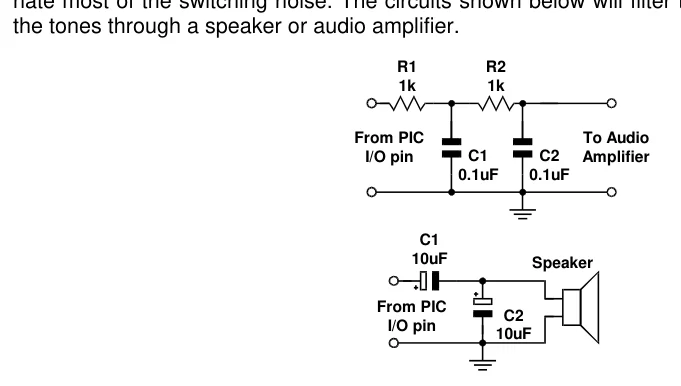

nate most of the switching noise. The circuits shown below will filter the signal in order to play

The two circuits shown above, work by filtering out the high-frequency PWM used to generate the sine waves. Freqout works over a very wide range of frequencies (0 to 32767KHz) so at the upper end of its range, the PWM filters will also filter out most of the desired frequency. You may need to reduce the values of the parallel capacitors shown in the circuit, or to create an active filter for your application.

View original PDF page 135

Open page in PDF

Example 2

' Play a tune using Freqout to generate the notes

  Device = 18F26K40          ' Select the device to compile for
  Declare Xtal = 20  ' Tell the compiler the device will be operating at 20MHz

  Dim bMyLoop as Byte       ' Counter for notes.
  Dim wFreq1 as Word       ' Frequency1.
  Dim wFreq2 as Word       ' Frequency2

  Symbol C = 2092           ' C note
  Symbol D = 2348           ' D note
  Symbol E = 2636           ' E note
  Symbol G = 3136           ' G note
  Symbol R = 0              ' Silent pause.
  Dim MyPin as PORTA.0      ' Sound output pin

  ADCON1 = 7               ' Set PORTA and PORTE to all digital
  bMyLoop = 0
  Repeat                    ' Create a loop for 29 notes within the LookUpL table.
     wFreq1 = LookUpL bMyLoop,[E,D,C,D,E,E,E,R,D,D,D,_
                              R,E,G,G,R,E,D,C,D,E,E,E,E,D,D,E,D,C]
     If wFreq1 = 0 Then
       wFreq2 = 0
     Else
        wFreq2 = wFreq1 - 8
     EndIf
     Freqout MyPin, 225, wFreq1, wFreq2
     Inc bMyLoop
  Until bMyLoop > 28

See also : DTMFout, Sound, Sound2.
