Output (PinOutput)

Source: Positron8 Compiler User Manual, PDF page 161

Syntax

Output Port or Port.Pin or Pin Number

PinOutput Port or Port.Pin or Pin Number

Overview

Makes the specified Port or Port.Pin an output. The name PinOutput can also be used instead of the name Output. They both work exactly the same but make the source code a little clearer to read and follow.

Parameters

Port must be the name of a Port. Port.Bit must be any valid port and bit combination, i.e. PORTA.1 Pin Number can be any variable or constant holding 0 to the amount of I/O pins on the device. A value of 0 will be PORTA.0, if present, 1 will be PORTA.1, 8 will be PORTB.0 etc…

Example

  Output PORTA.0
                             ' Make bit-0 of PORTA an output
  Output PORTA
                             ' Make all of PORTA an output
     Output 0
                             ' Make pin-0 of PORTA an output
   Output 8
                             ' Make pin-0 of PORTB an output
  Output Pin_B0
                             ' Make pin-0 of PORTB an output
  PinOutput PORTB.0
                             ' Make pin-0 of PORTB an output

Example 2

' Flash each of the pins on PORTA and PORTB
'
  Device = 18F26K40
                             ' Select the device to compile for
  Declare Xtal = 16 ' Tell the compiler the device will be operating at 16MHz
   Dim MyPin as Byte
   High PORTA
                             ' Make all of PORTA output high
   High PORTB
                             ' Make all of PORTB output high
   For MyPin = 0 to 15
                             ' Create a loop for the pin to flash
     Output MyPin            ' Set the pin as an output
     DelayMs 500
                             ' Delay so that it can be seen
     Input MyPin
                             ' Set the pin as an input
     DelayMs 500            ' Delay so that it can be seen
   Next

Notes

An Alternative method for making a particular pin an output is by directly modifying the TRIS: -

TRISB.0 = 0
                      ' Set PORTB, bit-0 to an output

All of the pins on a port may be set to output by setting the whole TRIS register at once: -

TRISB = 0b00000000
                      ' Set all of PORTB to outputs

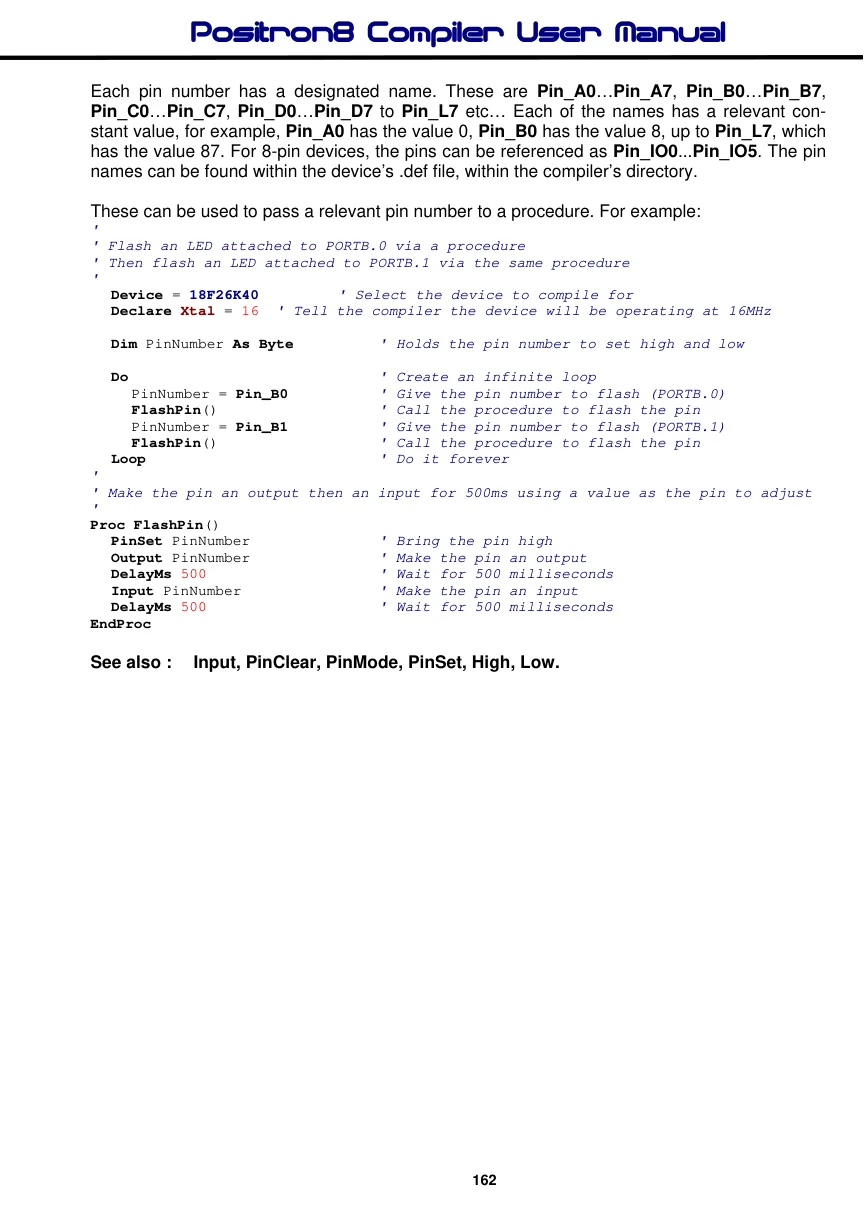

In the above examples, setting a TRIS bit to 0 makes the pin an output, and conversely, setting the bit to 1 makes the pin an input. Each pin number has a designated name. These are Pin_A0…Pin_A7, Pin_B0…Pin_B7, Pin_C0…Pin_C7, Pin_D0…Pin_D7 to Pin_L7 etc… Each of the names has a relevant constant value, for example, Pin_A0 has the value 0, Pin_B0 has the value 8, up to Pin_L7, which has the value 87. For 8-pin devices, the pins can be referenced as Pin_IO0...Pin_IO5. The pin names can be found within the device’s .def file, within the compiler’s directory.

These can be used to pass a relevant pin number to a procedure. For example:

'
' Flash an LED attached to PORTB.0 via a procedure
' Then flash an LED attached to PORTB.1 via the same procedure
'
  Device = 18F26K40
                             ' Select the device to compile for
  Declare Xtal = 16 ' Tell the compiler the device will be operating at 16MHz
  Dim PinNumber As Byte
                                  ' Holds the pin number to set high and low
  Do
                                  ' Create an infinite loop
     PinNumber = Pin_B0
                                  ' Give the pin number to flash (PORTB.0)
     FlashPin()
                                  ' Call the procedure to flash the pin
     PinNumber = Pin_B1
                                  ' Give the pin number to flash (PORTB.1)
     FlashPin()
                                  ' Call the procedure to flash the pin
  Loop
                                  ' Do it forever
'
' Make the pin an output then an input for 500ms using a value as the pin to adjust
'
Proc FlashPin()
  PinSet PinNumber
                                  ' Bring the pin high
  Output PinNumber
                                  ' Make the pin an output
  DelayMs 500
                                  ' Wait for 500 milliseconds
  Input PinNumber
                                  ' Make the pin an input
  DelayMs 500
                                  ' Wait for 500 milliseconds
EndProc
