File_Rename()

Parent Previous Next

File_Rename(pOldName, pNewName), Byte


pOldName: The current name of the file to be renamed. The string must be a maximum of 12 characters, including the file extension (e.g., MyFile.txt).

pNewName: The new name for the file. It also must be a string with a maximum length of 12 characters, including the extension.


Return Byte:

• cErrOK: Success – the file was renamed successfully.

• cErrExists: The new file name already exists – you cannot rename a file to a name that is already in use by another file or directory.

• cErrNotFound: The old file name was not found – the file you're trying to rename doesn't exist.

• cErrRWError: A read/write error occurred – there was an issue while renaming the file, possibly due to a disk error or filesystem issue.


Rename a File


The File_Rename() command allows you to rename an existing file on the SD card. This operation modifies the file name in the filesystem while keeping the file content intact.


Example:

File_Rename("OldFile.txt", "NewFile.txt")


How it Works:

• This command checks if the old file exists and if the new name is available.

• If the old file exists and the new name is valid (i.e., not already taken), it will rename the file.

• The file content and the file's properties remain unchanged; only the name of the file is modified in the filesystem.


Notes:

• File Size and Content: The file’s content is unaffected by this operation. Only the file’s name in the filesystem is updated.

• File/Directory Name Conflict: If a file with the new name already exists, the operation will fail with cErrExists.

• Filesystem Integrity: The filesystem is updated with the new file name, so other operations that depend on the file name (like File_Open(), File_Append(), or File_OpenAt()) will now use the new name.


TftSetUp(0)                                                                                 'Set screen

TftResetScreen(BLACK)                                                                       'Reset screen

TftSetSndFont(0,0)                                                                          'Set Font0

While File_Init() <> cErrOK : Wend                                                          'Initialize SD Card

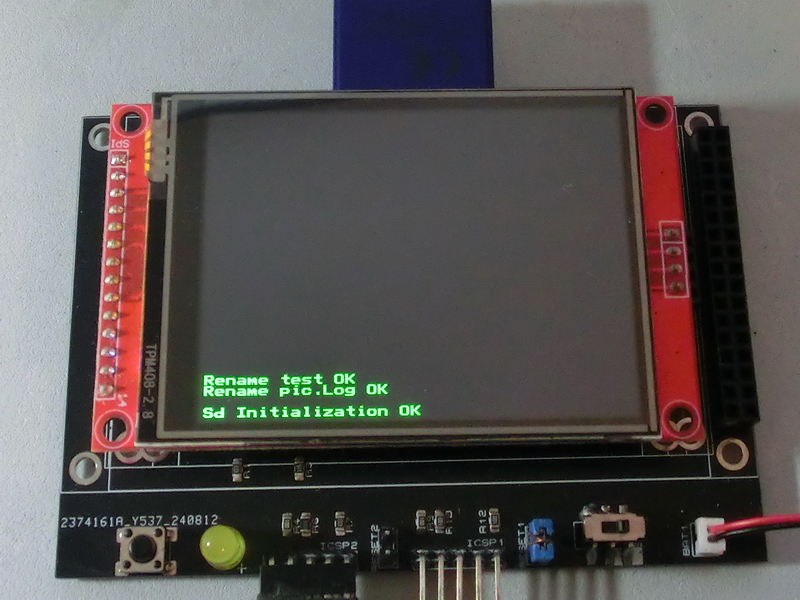

TftPrintSndString("Sd Initialization OK",1,0,0,1,GREEN,BLACK,0)                             'Confirm Initialize SD Card

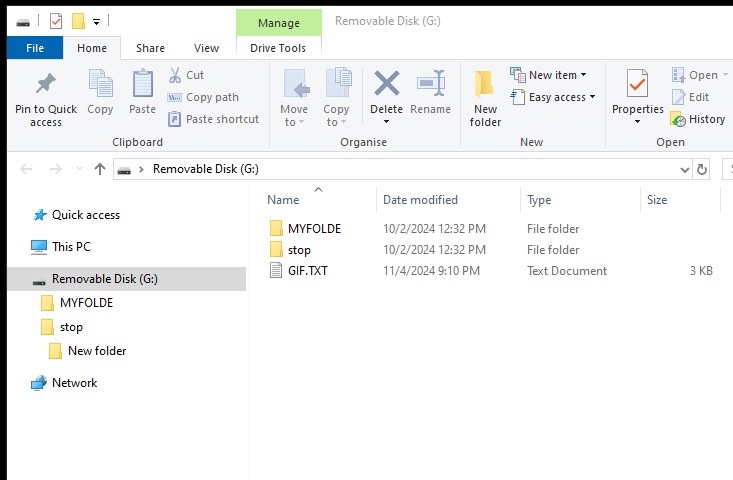

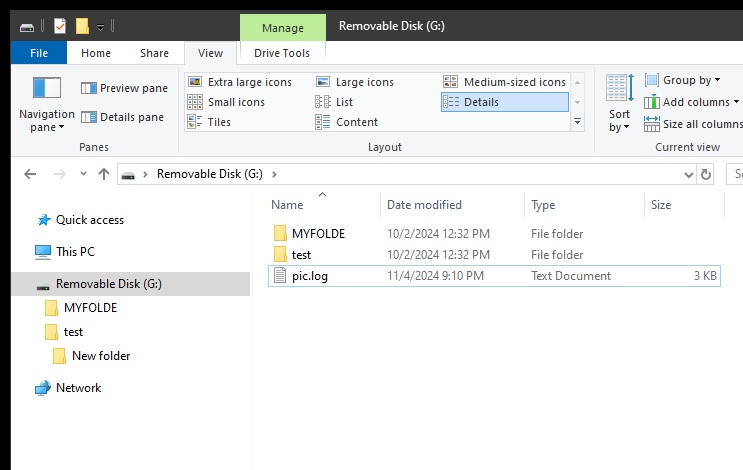

While File_Rename("pic.log","gif.txt") <> cErrOK : Wend                                     'Rename file pic.log to gif.txt

TftPrintSndString("Rename pic.Log OK",1,0,2,1,GREEN,BLACK,0)                                'Confirm rename file pic.Log To gif.txt

While File_RenameDir("test","stop") <> cErrOK : Wend                                        'Rename folder test to stop

TftPrintSndString("Rename test OK",1,0,3,1,GREEN,BLACK,0)                                   'Confirm rename folder test To Stop
